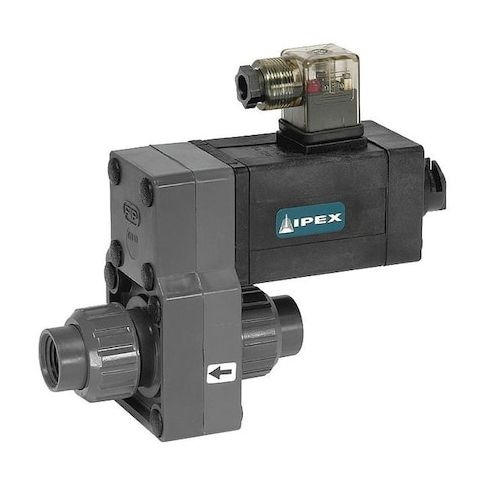

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, Direct Acting, PVC MPN:4GPR2
Free Shipping
In Stock
The GoVets Select 4GPR2 Solenoid Valve is a reliable and efficient solution for controlling fluid flow in various applications. This 2-way, 2-position normally closed valve features a direct acting operation type and is designed for use with water at temperatures up to 140°F. With a maximum flow rate of 95 gallons per minute, it's ideal for irrigation systems, water treatment plants, and other high-flow applications. Constructed with a PVC body and Viton seals, this valve is also resistant to corrosion and wear. Its compact design and easy installation make it a popular choice for industrial and commercial use.
Top product features:
- The valve is normally closed, allowing it to shut off fluid flow when the solenoid is not energized.
- The valve features a direct acting operation type, which means it controls fluid flow directly with the solenoid coil.
- The valve is designed for handling water at temperatures up to 140°F and a maximum flow rate of 95 gallons per minute.
Top product applications:
- Water Treatment Systems
- Washing Machines and Car Washes
- Hydraulic Systems and Pumps
The ZORO SELECT 4GPR2 is a 2-way, 2-position normally closed solenoid valve featuring a direct acting operation type. It is designed to control fluid flow with an orifice diameter of 25/64 inch and a valve flow coefficient (Cv) of 2.33. Constructed with a PVC body and Viton seals, this valve is suited for handling water at temperatures up to 140°F and a maximum flow rate of 95 gallons per minute. The valve includes a solenoid coil rated for 120V AC at 50 Hz, with a wattage consumption of 20 W and a coil insulation class of F. Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Operation: Direct Acting
- - Body Material: PVC
- - Seal Material: Viton
- - Orifice Diameter: 25/64 in
- - Cv (Flow Coefficient): 2.33
- - Maximum Fluid Temperature: 140°F for water
- - Maximum Flow Rate: 95 gpm
- - Maximum Operating Pressure Differential: 90 psi (water, light oil at 73°F)
- - Electrical Specifications: 120V AC, 50 Hz, 20 W power consumption
- - Coil Enclosure: Watertight
- - Coil Insulation Class: F
- - Electrical Connections: Wire Leads
- - Environmental Rating: Indoor and outdoor use
- - NEMA Enclosure Rating: 4
- - Nominal Pipe Size: 1/2 in
- - Dimensions: Overall Height 6-1/16 in, Length 4-1/16 in, Width 2-9/16 in
Additional Information
- Country of Origin: IT
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.40
- Package Width: 3.00
- Package Height: 7.10
- Package Weight: 2.79
