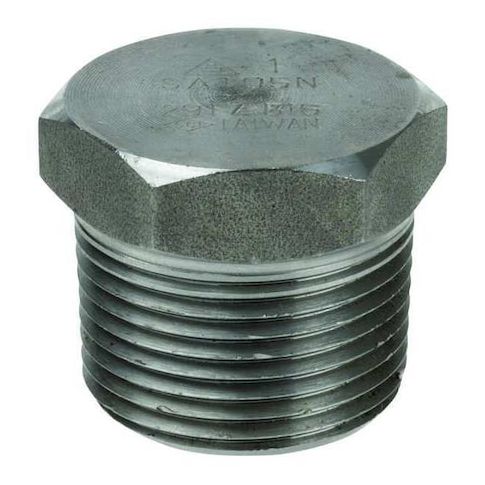

3/8 in Hex Head Plug, 304 Stainless Steel, MNPT, Class 3000, 11/16 in Hex Size MPN:4307000454
The ZORO SELECT 4307000454 is a high-performance hex head plug designed for closing off pipe ends, fittings, and ports in demanding applications. Made from corrosion-resistant 304 stainless steel, this plug withstands up to 2,570 psi at 100°F and 1,965 psi steam at 350°F. Its six-sided hex head allows for easy tightening or removal using a wrench. Ideal for use in industries requiring high pressure and temperature tolerance, such as oil and gas, chemical processing, and HVAC. This plug is also suitable for use in high-temperature steam applications, making it a reliable choice for a wide range of industries and applications.
Top product features:
- Material: 304 stainless steel for corrosion and temperature resistance.
- Connection Type: Male National Pipe Thread (MNPT) for threaded pipe fittings.
- Pressure Rating: Class 3000, with a maximum pressure of 2,570 psi at 100°F and a maximum steam pressure of 1,965 psi at 350°F.
Top product applications:
- Close off the end of a pipe
- Close off a fitting or port
- Seal a port or valve in a steam system
The ZORO SELECT - 4307000454 is a hex head plug made from 304 stainless steel, designed to close off the end of a pipe, fitting, or port. It features a six-sided hex head that allows tightening or removal using a wrench, rated to withstand up to 2,570 psi at 100°F and up to 1,965 psi steam at 350°F per the product's pressure ratings. This plug has a 3/8 inch nominal pipe size and is constructed from 304 stainless steel, which provides corrosion resistance and temperature tolerance within the material specifications.
Key Features:
- - Material: 304 stainless steel for corrosion and temperature resistance.
- - Connection Type: Male National Pipe Thread (MNPT) for threaded pipe fittings.
- - Nominal Pipe Size: 3/8 inch.
- - Pressure Rating: Class 3000, with a maximum pressure of 2,570 psi at 100°F and a maximum steam pressure of 1,965 psi at 350°F.
- - Hex Size: 11/16 inch across flats for wrench engagement (3/8 inch hex drive).
- - Overall Length: 13/16 inch with an outside diameter of 11/16 inch.
- - Standards: Threads meet ASME B1.20.1 NPT, materials conform to ASTM A182, and dimensions comply with ASME B16.11.
- - Does not include pre-applied thread sealant or sealing components.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 2.50
- Package Height: 1.00
- Package Weight: 1.29
