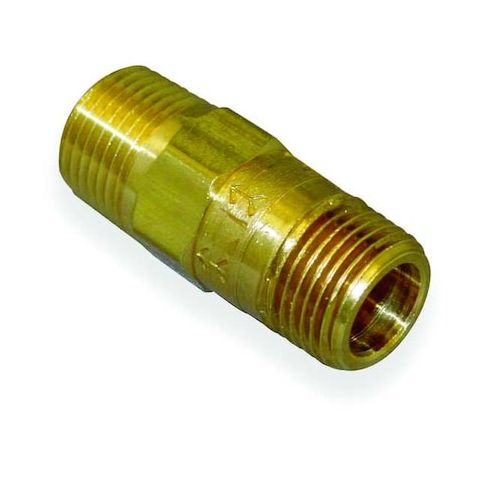

3/8" MNPT Brass Piston Spring Check Valve MPN:CHK BRS 610-6M6M-B

Zoro Select 610 Series 3/8 in. piston spring check valve is an inline check valve with a brass body and brass piston mechanism. It uses a spring-loaded piston mechanism for one-direction flow applications in air and fluid piping systems. This valve features 3/8 in. MNPT x MNPT connections, a 1 psi cracking pressure, and horizontal or vertical mounting.

Key Features:

• Valve type: Piston spring check valve with inline piston mechanism and single-flow design
• Body and internal materials: Brass body, brass seat, brass check mechanism, stainless steel spring, and Buna-N seal
• Connections: 3/8 in. male NPT x male NPT
• Pressure rating: 500 psi maximum operating and water pressure
• Temperature range: -20 Degrees F to 180 Degrees F
• Flow characteristics: 1.4 Cv and 1 psi cracking pressure
• Media: Air and fluids
• Mounting orientation: Horizontal or vertical
• Dimensions: 1 11/16 in. length, 11/16 in. overall height and width, 11/16 in. hex size
