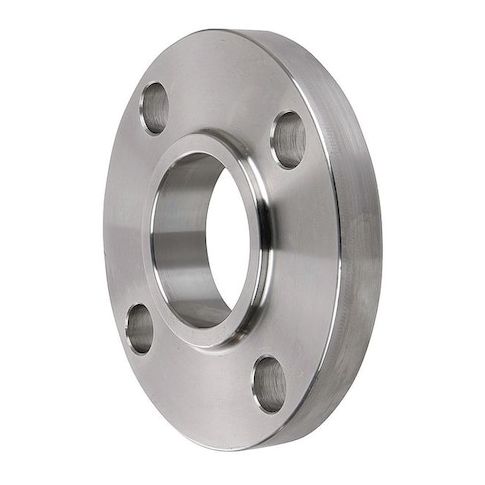

Slip-On Flange, 1-1/4 in, 304 Stainless Steel, Class 300, Raised Face MPN:4381003820
The ZORO SELECT - 4381003820 stainless steel slip-on flange is designed for high-pressure applications, providing reliable and durable connections in various industries. Manufactured from forged 304 stainless steel, this flange offers excellent corrosion resistance and mechanical strength, ensuring long-lasting performance. Its raised face design and slip-on connection type make it suitable for use in power plants, oil and gas processing, and chemical processing facilities, where high pressure and temperature requirements are common. With its robust construction and precise dimensions, this flange is an ideal choice for applications where safety and efficiency are paramount.
Top product features:
- Forged 304 Stainless Steel construction provides corrosion resistance and mechanical strength.
- Slip-On connection allows for easy installation using compatible welding methods.
- Raised face connection surface facilitates secure and leak-free connections.
Top product applications:
- High-pressure steam systems
- Industrial piping systems
- Chemical processing plants
The ZORO SELECT - 4381003820 is a stainless steel slip-on flange rated for operation within specified pressure ranges. It features a bore slightly larger than the pipe outside diameter, intended for connection using compatible welding methods as per installation standards. Manufactured from forged 304 stainless steel, which provides corrosion resistance and mechanical strength within specified parameters. This flange has a bolt circle diameter of 4 1/2 inches, a flange outside diameter of 5 1/4 inches, and a flange thickness of 7/8 inches. It is rated for use within specified maximum pressure limits of 720 psi and steam pressure limits of 300 psi.
Key Features:
- - Material: Forged 304 Stainless Steel, consistent with manufacturing specifications.
- - Connection Type: Slip On.
- - Pressure ratings: maximum working pressure of 720 psi, maximum steam pressure of 300 psi, as per product specifications.
- - Flange dimensions as specified: outside diameter of 5 1/4 inches, flange thickness of 7/8 inches.
- - Bolt circle diameter: 4 1/2 inches
- bolt holes: 3/4 inches diameter, as specified.
- - Overall length: 1 1/16 inches, as measured.
- - Standards: Manufactured in accordance with ASTM-SA182 and ANSI B16.5 specifications.
- - Connection surface: raised face, as per standard design.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 5.50
- Package Height: 1.30
- Package Weight: 3.85
