2" Welded SS Lap Joint Flange MPN:4381002050
2" Welded SS Lap Joint Flange

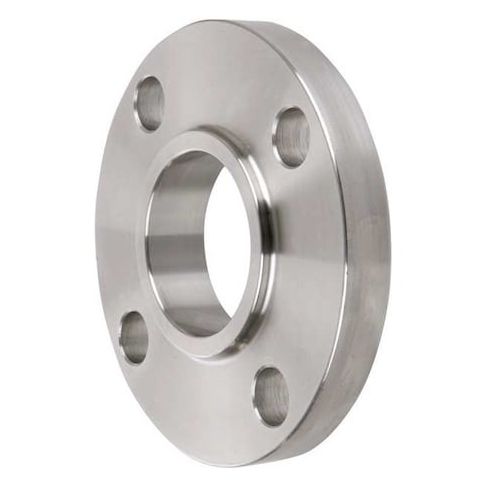

The ZORO SELECT - 4381002050 is a lap joint flange designed for use in stainless steel piping systems. This flange is a loose, flat ring that fits over a matching stub end welded to the pipe, which permits bolt-hole alignment during assembly. Constructed from 316 stainless steel. Material: 316 stainless steel. Fluid contact is limited to the stub-end connection. It is rated for Class 150 pressure with a maximum operating pressure of 150 psi and operates within a temperature range of -60 to 450 degrees Fahrenheit. Key Features:
- - Material: 316 Stainless Steel, providing corrosion resistance.
- - Type: Lap joint flange with a welded connection surface.
- - Nominal Pipe Size: 2 inches.
- - Flange Outside Diameter: 6 inches.
- - Number of Bolt Holes: 4, for securing the flange.
- - Pressure Rating: Class 150, maximum operating pressure of 150 psi.
- - Temperature Range: -60 Degrees to 450 Degrees F.
- - Standards: Conforms to ANSI B16.5 and ASTM A182.
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 1.10
- Package Weight: 4.90
Product info last updated on February 8, 2026 12:00pm UTC
Category: Pipes, Valves and Fittings
