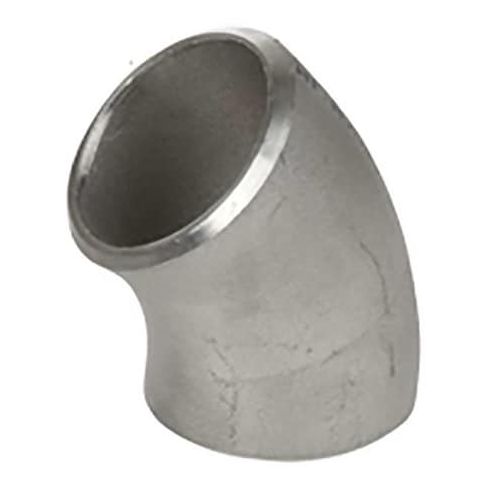

45° Elbow, 316 Stainless Steel, Butt Weld, 2 in Pipe Size, Schedule 10 MPN:4381013850
For high-pressure piping systems, the 45° Elbow, 316 Stainless Steel, Butt Weld, 2 in Pipe Size, Schedule 10 is a reliable choice. Constructed from corrosion-resistant 316 stainless steel, this fitting provides durability and flexibility in demanding applications. Its 45-degree angle allows for efficient flow direction changes, making it ideal for use in chemical processing, oil and gas refineries, and pharmaceutical manufacturing. With a maximum allowable working pressure of 275 psi at 150°F, this fitting is suitable for high-pressure conditions, ensuring safe and reliable operation in a variety of industries.
Top product features:
- Material Grade: 316 Stainless Steel — provides high corrosion resistance and durability.
- Fitting Shape: 45 Degrees Elbow — creates a 45-degree change in flow direction.
- Maximum Operating Pressure: 275 psi @ 150°F — rated for high-pressure conditions.
Top product applications:
- Chemical Processing Plants
- High-Purity Water Systems
- Food and Beverage Manufacturing
The ZORO SELECT - 4381013850 is a stainless steel elbow fitting, designed to change the direction of piping systems. It features a 45-degree angle with butt-weld connections on both sides, each with a nominal pipe size of 2 inches and an outside diameter of 2 inches. Constructed from 316 stainless steel, this fitting provides corrosion resistance and durability as specified by material grade 316 stainless steel. Its maximum allowable working pressure is 275 psi at 150°F, in accordance with industry standards such as ASTM A403 and ASTM B16.9.
Key Features:
- - Material Grade: 316 Stainless Steel — provides high corrosion resistance and durability.
- - Fitting Shape: 45 Degrees Elbow — creates a 45-degree change in flow direction.
- - Connection Types: Butt Weld on both sides — designed for welded pipe connections.
- - Nominal Pipe Size: 2 in — standardized pipe size for compatibility.
- - Outside Diameter: 2 in — external dimension at the connection point.
- - Standards: ASTM A403, ASTM B16.9, MSS SP-43 — ensures compliance with industry specifications.
- - Maximum Operating Pressure: 275 psi @ 150°F — rated for high-pressure conditions.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.50
- Package Height: 3.50
- Package Weight: 0.60
