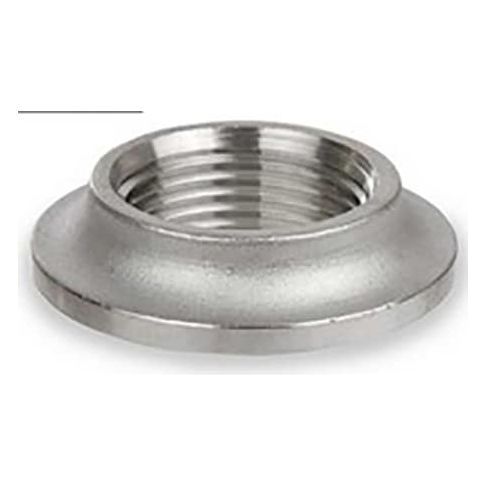

Weld Spud, 316 Stainless Steel, 1 in FNPT, Class 150, Schedule 40 MPN:4381047640
The ZORO SELECT Weld Spud is a versatile and reliable connection solution for welded piping runs. Made from durable 316 stainless steel, this fitting features a weld-prepared female connection for seamless integration with Schedule 40 pipe, paired with a removable female NPT threaded outlet for easy attachment of valves, gauges, or branch lines. Rated for 300 psi at 150°F, this fitting meets ANSI B1.20.1 and ASTM A351 standards, making it suitable for various industrial applications, including chemical processing, oil and gas, and water treatment. Its compact design and corrosion-resistant material ensure long-lasting performance and reduced maintenance costs.
Top product features:
- 316 stainless steel construction provides corrosion resistance and durability.
- The weld-prepared female connection allows for a permanent, leak-free weld to the piping run.
- The female NPT threaded connection enables the attachment of valves, gauges, or branch lines.
Top product applications:
- Welding and fabrication of piping systems in food processing and pharmaceutical industries due to its corrosion resistance and sanitary properties.
- Use in high-temperature applications such as power generation and chemical processing due to its ability to withstand elevated temperatures.
- As a spud for connecting to valves, gauges, or branch lines in industrial piping systems requiring a combination of welding and threading.
The ZORO SELECT - 4381047640 is a 316 stainless steel weld spud designed to connect welded piping runs to threaded components. One end features a weld-prepared, female connection sized for 1-inch nominal pipe size with a pipe schedule of 40, while the other end has a female NPT threaded connection of the same size. This fitting is designed for a welded connection to the piping run, combined with a removable threaded outlet for attaching valves, gauges, or branch lines. It is rated for a maximum operating pressure of 300 psi at 150 degrees Fahrenheit and meets ANSI B1.20.1 and ASTM A351 standards. Key Features:
- - Material: 316 stainless steel
- - Class 150 pressure rating
- - Side A: 1 in nominal pipe size, female NPT connection
- - Side B: 1 in nominal pipe size, female NPT connection
- - Compatible with Schedule 40 pipe
- - No pre-applied thread sealant included
- - Does not include a sealing component
- - Color: Silver
- - Standards: ANSI B1.20.1
- ASTM A351
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 2.20
- Package Height: 0.70
- Package Weight: 0.19
