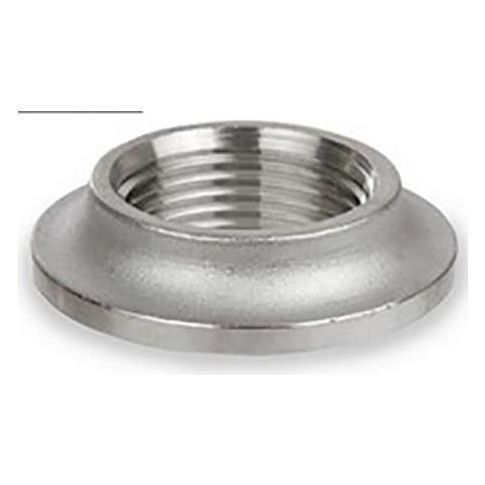

Weld Spud, 316 Stainless Steel, 3/8 in FNPT, Class 150, Schedule 40 MPN:4381047610
This 316 stainless steel weld spud is designed for use in welded piping systems, providing a reliable connection to threaded components such as valves or gauges. Its female NPT connections are sized for 3/8-inch nominal pipe diameter, making it compatible with schedule 40 pipe. The weld spud is rated for pressures up to 300 psi at 150°F, making it suitable for use in various industrial applications, including chemical processing, oil and gas, and water treatment. Its durable construction ensures long-lasting performance and resistance to corrosion.
Top product features:
- It connects welded piping systems to threaded components such as valves or gauges.
- It has a weld-prepared female NPT connection on one side and a female NPT threaded connection on the other.
- It is rated for use at pressures up to 300 psi at 150°F.
Top product applications:
- Welding and fabrication of stainless steel piping systems
- Connecting valves or gauges to welded piping systems
- Pressure gauge and instrument installations
The ZORO SELECT - 4381047610 is a stainless steel weld spud designed to connect welded piping systems to threaded components such as valves or gauges. It features a weld-prepared female NPT connection on one side and a female NPT threaded connection on the other, both sized for 3/8-inch nominal pipe diameter. Constructed from 316 stainless steel, this fitting is rated for use at pressures up to 300 psi at 150°F and is compatible with schedule 40 pipe. It is manufactured in accordance with ANSI B1.20.1 and ASTM A351 standards.
Key Features:
- - Material: 316 stainless steel
- - Connection on Side A: Female NPT, 3/8 in nominal pipe size
- - Connection on Side B: Female NPT, 3/8 in nominal pipe size
- - Pipe Schedule Compatibility: 40
- - Pressure Rating: 300 psi at 150°F
- - Standards: ANSI B1.20.1 and ASTM A351
- - Color: Silver
- - Includes no pre-applied thread sealant or seals
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
