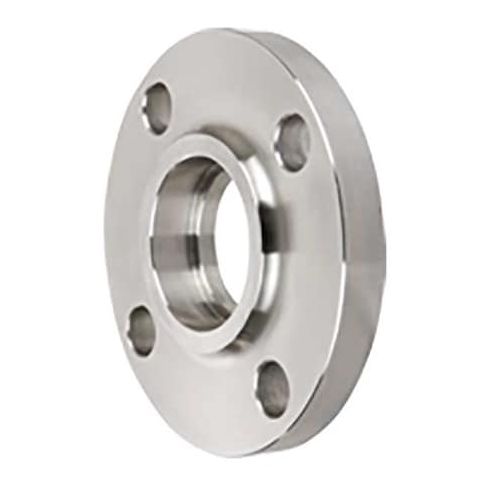

Pipe Flange, Schedule 80, 316/316L Stainless Steel, 1 in Nominal Pipe Size, Raised Face MPN:4381005810
The ZORO SELECT 1-inch nominal pipe size pipe flange is a reliable and durable solution for various industrial applications. Made from 316/316L stainless steel, this Schedule 80 socket weld flange offers exceptional corrosion resistance and is designed for use in high-pressure systems. Its raised face connection surface ensures a secure and pressure-tight joint when installed according to proper procedures. Suitable for use in chemical processing, oil and gas, and power generation industries, this flange conforms to ASME standards and is available for immediate shipping. Its compact design and ease of installation make it an ideal choice for engineers and technicians.
Top product features:
- Material is 316/316L Stainless Steel, offering corrosion resistance.
- The flange has a Schedule 80 socket weld design, allowing for pressure-tight joints when installed.
- The raised face connection surface enables standard threading and gasket applications.
Top product applications:
- Chemical Process Industry
- Oil and Gas Industry
- Power Generation Industry
The ZORO SELECT - 4381005810 is a 1-inch nominal pipe size pipe flange made from 316/316L stainless steel. It is designed as a Schedule 80 socket weld flange with a raised face connection surface, compatible with standard threading and gasket applications as per specified standards. The flange is rated for operation within the specified pressure class and conforms to standards ASME A182, ASME B1.20.1, and ASME B16.5. This flange offers corrosion resistance in accordance with relevant standards and enables pressure-tight joints when installed according to proper procedures and standards.
Key Features:
- - Material: 316/316L Stainless Steel
- - Nominal Pipe Size: 1 in
- - Specific Fitting Shape: Schedule 80 Socket Weld Flange
- - Connection Surface: Raised Face
- - Pressure Class Rating: Class 150
- - Number of Bolt Holes: 4
- - Bolt Circle Diameter: 3 1/2 in
- - Bolt Hole Diameter: 3/4 in
- - Flange Outside Diameter: 4 7/8 in
- - Flange Thickness: 11/16 in
- - Standards: ASME A182
- ASME B1.20.1
- ASME B16.5
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.88
- Package Width: 4.88
- Package Height: 1.06
- Package Weight: 3.09
