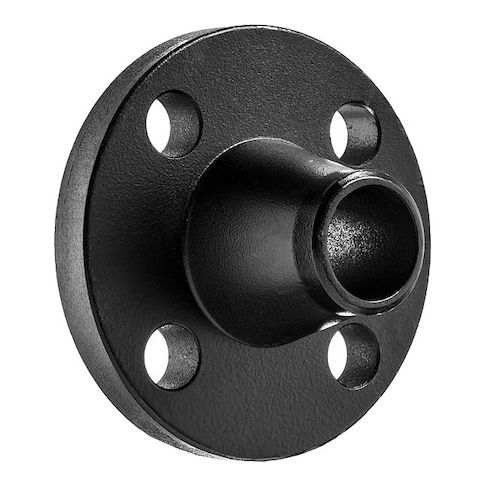

Weld Neck Flange Pipe Flange, 2-1/2" Pipe, Flanged x Weld Neck, Steel, Class 300 MPN:BULK-PF-503
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G100424918
Weld Neck Flange Pipe Flange, 2-1/2" Pipe, Flanged x Weld Neck, Steel, Class 300
Upgrade your pipeline with the Weld Neck Flange Pipe Flange from GoVets Select. This heavy-duty flange is designed for use in industrial applications, featuring a robust steel construction with a Class 300 rating and maximum operating pressure of 725 psi. The 2-1/2in pipe size and raised flange design ensure a secure connection, making it ideal for steam systems, chemical processing, and other high-pressure applications. With a long operating temperature range of 80-780°F, this flange is built to withstand the demands of heavy industry, providing reliable performance and extending equipment lifespan.
Top product features:
- Raised flange design
- 8 bolt holes with a 3/4 in diameter
- 725 psi maximum operating pressure at 72 degrees F
Top product applications:
- High Pressure Steam System
- Oil and Gas Refining Process
- Industrial Power Plant
Flange, Raised, 2 1/2 in Nominal Pipe Size, Flanged x Weld Neck, 7 1/2 in Flange Outside Diameter, 15/16 in Flange Thickness, 7 1/2 in Overall Length, Steel, Black Coated, A105, Class Class 300, For Pipe Schedule Schedule 80, 725 psi @ 72 Degrees F Maximum Operating Pressure, 725 psi Max. Steam Pressure, 80 Degrees to 780 Degrees F, Number of Bolt Holes 8, 5 7/8 in Bolt Circle Diameter, 3/4 in Bolt Hole Diameter
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 70 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.12
- Package Width: 2.66
- Package Height: 3.12
- Package Weight: 1.10
Product info last updated on March 14, 2026 7:57pm UTC
Category: Pipes, Valves and Fittings
