Weld Neck Flange Pipe Flange, 1-1/2" Pipe, Flanged x Weld Neck, Steel, Class 1500 MPN:BULK-PF-567
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G100424796

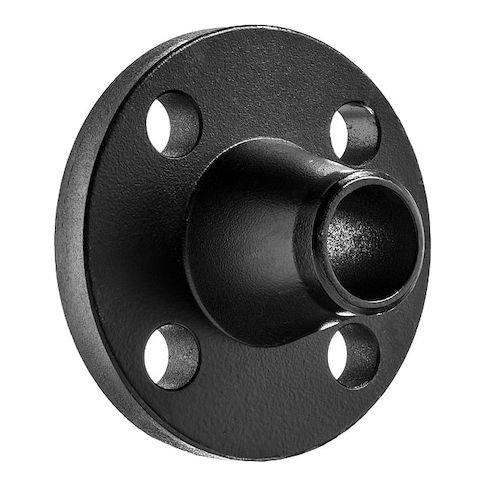

Weld Neck Flange Pipe Flange, 1-1/2" Pipe, Flanged x Weld Neck, Steel, Class 1500
This Weld Neck Flange Pipe Flange is designed for high-pressure applications, featuring a Class 1500 rating and a maximum operating pressure of 3,600 psi. Its steel construction and black coating ensure durability and corrosion resistance. Suitable for use with pipe schedule XXH, this flange is ideal for applications such as power plants, oil refineries, and chemical processing facilities. Its raised face design and 4-bolt pattern provide a secure connection, while its weld neck design allows for easy installation. With a temperature range of 80-780°F, this flange is a reliable choice for demanding industrial environments.
Top product features:
- Raised flange design for easy installation and sealing
- Weld neck connection for secure and leak-free pipe joining
- Maximum operating pressure of 3,600 psi for safe and reliable performance
Top product applications:
- High-pressure steam piping systems
- High-temperature chemical processing plants
- Heavy-duty industrial manufacturing facilities
Flange, Raised, 1 1/2 in Nominal Pipe Size, Flanged x Weld Neck, 7 in Flange Outside Diameter, 1 1/4 in Flange Thickness, 7 in Overall Length, Steel, Black Coated, A105, Class Class 1500, For Pipe Schedule Schedule XXH, 3,600 psi @ 72 Degrees F Maximum Operating Pressure, 3,600 psi Max. Steam Pressure, 80 Degrees to 780 Degrees F, Number of Bolt Holes 4, 4 7/8 in Bolt Circle Diameter, 1 in Bolt Hole Diameter
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.23
- Package Width: 2.17
- Package Height: 3.23
- Package Weight: 1.21
Product info last updated on April 3, 2026 7:00am UTC
Category: Pipes, Valves and Fittings
