Flange, Aluminum, Threaded, 3 7/8 in MPN:BULK-PF-453
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G100424659

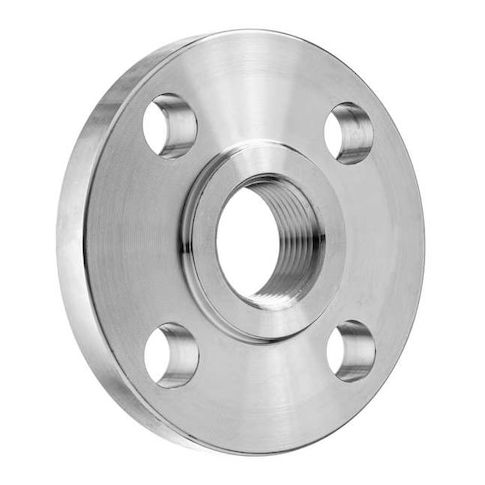

Flange, Aluminum, Threaded, 3 7/8 in
This aluminum flange is designed for use with Schedule 40 pipe and features a Class 125 rating for maximum operating pressure. With a flange outside diameter of 3 7/8 inches and a thickness of 7/16 inch, it provides a secure connection for various applications. The flange is suitable for use in steam systems, with a maximum steam pressure of 185 psi. It is also compatible with a wide temperature range of 0 to 270 degrees F. The flange's compact size and lightweight aluminum construction make it ideal for use in industrial and commercial settings.
Top product features:
- The product has a threaded connection for easy installation.
- The product has a flanged design with a bolt circle diameter of 2 3/4 inches for secure attachment.
- The product can withstand a maximum operating pressure of 125 psi @ 72 Degrees F for reliable performance.
Top product applications:
- Steam System
- High Pressure Pipe Fittings
- Industrial Pipe Connections
Flange, Flat, 3/4 in Nominal Pipe Size, Flanged x FNPT, 3 7/8 in Flange Outside Diameter, 7/16 in Flange Thickness, 3 7/8 in Overall Length, Aluminum, Not Applicable, 6063, Class Class 125, For Pipe Schedule Schedule 40, 125 psi @ 72 Degrees F Maximum Operating Pressure, 185 psi Max. Steam Pressure, 0 Degrees to 270 Degrees F, Number of Bolt Holes 4, 2 3/4 in Bolt Circle Diameter, 5/8 in Bolt Hole Diameter
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 4.10
- Package Height: 0.80
- Package Weight: 0.49
Product info last updated on January 19, 2026 11:02pm UTC
Category: Pipes, Valves and Fittings
