Cap, 304 Stainless Steel, 1 in Nominal Pipe Size, Female BSPT, Class 150 MPN:ZUSA-PF-8245

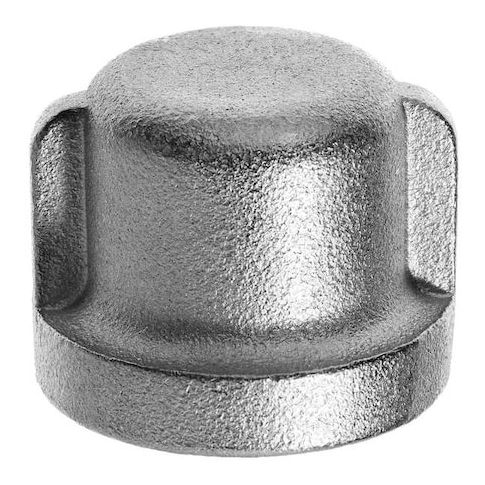

• The ZORO SELECT - ZUSA-PF-8245 is a stainless steel pipe cap

• material: 304 stainless steel, intended to seal the end of a 1-inch nominal pipe. It features a Female BSPT threaded connection for removable installation
• creates a closed end at the pipe. This cap is rated for Class 150 pressure, with a maximum operating and steam pressure of 150 psi. It meets the ISO 7.1 standard and has a temperature range of 0 to 360 degrees Fahrenheit. The cap’s outside diameter measures 1 9/16 inches, with an overall length of 1 1/16 inches. It does not include a pre-applied thread sealant or a separate sealing component.

  Key Features:


  • - Material: 304 Stainless Steel
  • - Nominal Pipe Size: 1 inch
  • - Pressure Rating: Class 150
  • Maximum Operating and Steam Pressure: 150 psi
  • - Connection Type: Female BSPT threaded
  • - Temperature Range: 0 to 360 degrees Fahrenheit
  • - Standards Compliance: ISO 7.1
  • - Dimensions: Outside Diameter 1 9/16 inches
  • Overall Length 1 1/16 inches
  • - Does not include pre-applied thread sealant or sealing components
