StainlessSteel, HexNipple, 1/2"NPTx3/8"NPT MPN:ZUSA-PF-7833

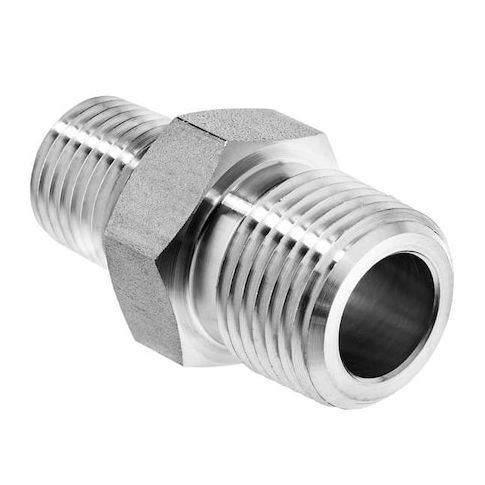

• The ZORO SELECT - ZUSA-PF-7833 is a stainless steel instrumentation pipe fitting designed as a reducing hex nipple with male threaded connections on both ends in different nominal pipe sizes. It is constructed from 304 stainless steel material and conforms to ANSI B31.1 standards. Intended for connecting, redirecting, or terminating small-diameter tubing and piping in air, natural gas, oil, potable water, and steam systems within its rated operating pressure of 7,200 psi, per ANSI B31.1 standards. It provides a joint rated for maximum operating pressure up to 7,200 psi, suitable for instrumentation, sampling, and control systems. Key Features:


  • - Material: 304 Stainless Steel.
  • - Fitting shape: Reducing hex nipple with a hexagonal center section for wrench tightening.
  • - Connection sizes: Side A – 1/2 in nominal pipe size, Male, 14 TPI, NPT thread
  • Side B – 3/8 in nominal pipe size, Male, 18 TPI, NPT thread.
  • - Maximum operating pressure: 7,200 psi.
  • - Overall length: 1 11/16 in.
  • - Color: Silver.
  • - Includes no pre-applied thread sealant or additional seal.
  • - Hex size (across flats): 7/8 in.
  • - Low lead compliance: Compliant for potable water use.
  • - Applicable standards: ANSI B31.1.
