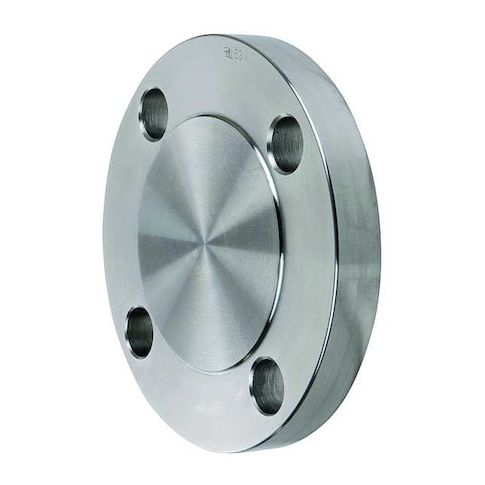

4" Welded SS Blind Flange MPN:4381003470
The ZORO SELECT 4381003470 stainless steel blind flange is a crucial component for creating a sealed termination point in piping systems. Its corrosion-resistant 304 stainless steel construction ensures durability and reliability in high-pressure applications. With a Class 300 pressure rating and maximum operating pressure of 720 psi, this flange is suitable for use in industrial systems, including chemical processing, oil and gas, and power generation. Its raised face surface and bolted connection facilitate easy installation and maintenance, making it an essential tool for engineers and technicians working with piping systems.
Top product features:
- Made from forged 304 stainless steel, rated for use within specified corrosion resistance parameters
- Bolted connection type, with 8 bolt holes to secure the flange to compatible components
- Class 300 pressure rating, indicating suitability for high-pressure systems
Top product applications:
- Pipe termination point
- Pressure vessel closure
- Valve closure
The ZORO SELECT 4381003470 is a stainless steel blind flange used to close off the end of a pipe, valve, or pressure vessel within its rated specifications, creating a sealed termination point in a piping system. It provides corrosion resistance and pressure containment, facilitating maintenance or pressure testing when removed. Typically bolted to a mating flange with a gasket for installation within specified pressure ranges, this flange supports rated for applications within the specified pressure ranges and allows for system access.
Key Features:
- - Made from forged 304 stainless steel, rated for use within specified corrosion resistance parameters
- - Bolted connection type, with 8 bolt holes to secure the flange to compatible components
- - Bolt circle diameter of 7 7/8 inches and bolt hole diameter of 7/8 inch as specified for compatible installations
- - Designed with a raised face surface for sealing within the parameters of standard installation
- - Class 300 pressure rating, indicating suitability for high-pressure systems
- - Has an outside diameter of 10 inches and flange thickness of 1 1/4 inches as specified
- - Nominal pipe size of 4 inches
- overall dimensions meet standard specifications
- - Rated for operation up to 720 psi maximum pressure and 300 psi maximum steam pressure
- - Standards compliance with ASTM-SA182 and ANSI B16.5, ensuring adherence to recognized specifications
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.60
- Package Width: 10.50
- Package Height: 5.70
- Package Weight: 27.23
