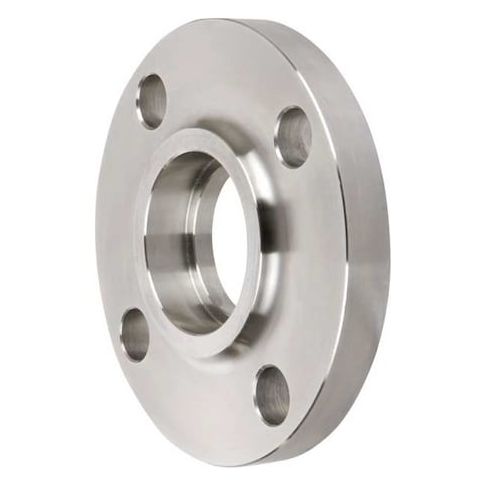

3" Welded SS Socket Weld Flange MPN:4381002470
Free Shipping
In Stock
The ZORO SELECT - 4381002470 3in Welded SS Socket Weld Flange is a reliable and versatile component for piping systems requiring welded connections. Suitable for use in a variety of applications, including chemical processing, oil and gas, and power generation, this flange offers a secure and leak-resistant connection. Constructed from 316 stainless steel, it provides excellent corrosion resistance and durability. Rated to Class 150 standards, it can withstand operating pressures of up to 150 psi and temperatures ranging from -60 to 450 F, making it an ideal choice for demanding industrial environments.
Top product features:
- 316 Stainless Steel construction provides corrosion resistance and durability.
- The flange features a raised face and a recessed socket to accept the pipe end, which is then secured by a fillet weld to create a weld joint meeting standard welding specifications.
- The flange is rated to Class 150 standards with a maximum operating pressure of 150 psi and temperature range: -60 to 450 F.
Top product applications:
- Chemical Processing
- High-Temperature Piping Systems
- Oil and Gas Industry
The ZORO SELECT - 4381002470 is a 316 stainless steel socket weld flange designed for use in piping systems requiring welded connections. The flange features a raised face and a recessed socket to accept the pipe end, which is then secured by a fillet weld to create a weld joint meeting standard welding specifications. This flange is rated to Class 150 standards with a maximum operating pressure of 150 psi and temperature range: -60 to 450 F. The flange has a nominal pipe size of 3 inches and an outside diameter of 7 1/2 inches, featuring four bolt holes for bolts to mating components.
Key Features:
- - Material: 316 Stainless Steel
- - Connection Type: Welded socket weld flange with a raised face surface.
- - Pressure Rating: Class 150, maximum operating pressure 150 psi.
- - Nominal Pipe Size: 3 inches.
- - Flange Outside Diameter: 7 1/2 inches.
- - Number of Bolt Holes: 4.
- - Temperature Range: -60 to 450 F.
- - Complies with ANSI B16.5 and ASTM A182 standards.
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 7.50
- Package Height: 1.90
- Package Weight: 9.26
