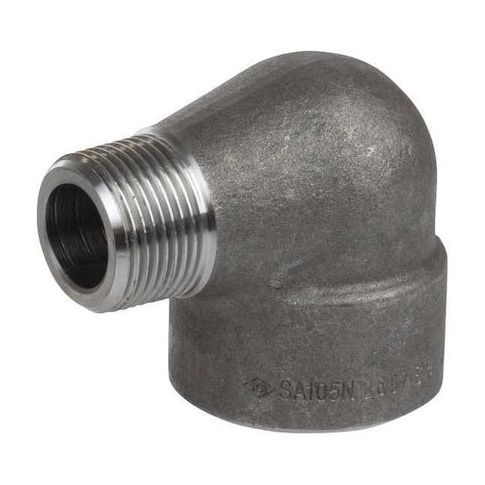

3/8 in 316 Stainless Steel Street 90° Elbow, Male x Female Threaded, Class 3000 MPN:2UA10

The ZORO SELECT - 2UA10 is a 90 Degree Street Elbow stainless steel pipe fitting that changes the direction of flow by 90 degrees. It features one male (street) end and one female end, allowing for direct connection between fittings or pipes without requiring a short nipple. Manufactured from 316 stainless steel, suitable for use within specified pressure and temperature ranges. It is constructed to Class 3000 standards and includes threaded NPT connections on both ends sized at 3/8 inch.

Key Features:

• - Pipe Fitting Material: 316 Stainless Steel
• - Specific Shape: 90 Degree Street Elbow with male (Side A) and female (Side B) NPT threaded ends
• - Nominal Pipe Size: 3/8 inch on both sides
• - Thread Size: 18 threads per inch on both male and female ends
• - Pressure Class: Class 3000
• - Designed for use within the specified pressure and temperature parameters
• - Designed for use within the specified pressure and temperature parameters
• - Threaded Connection Type: MNPT x FNPT
• - Conforms to ASTM A182 material standards, ANSI/ASME B1.20.1 thread standards, and ASME B16.11 pressure and dimension standards
• - Does not include pre-applied thread sealant or a sealing component
