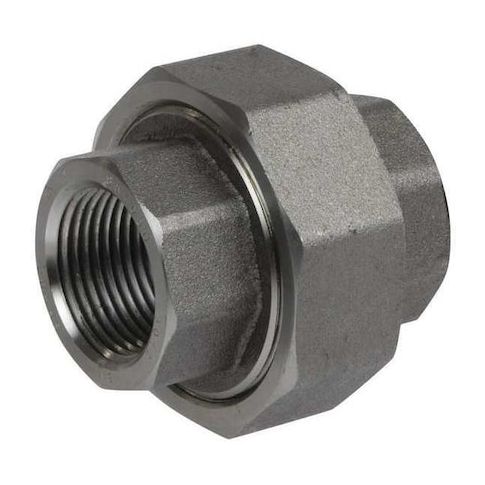

3/4 in FNPT 304 Stainless Steel Threaded Union, Class 3000 MPN:2UA98
Free Shipping
In Stock
This 3/4 in FNPT 304 Stainless Steel Threaded Union is a reliable and durable connection solution for various industrial applications. Designed for joining two pipe ends without rotating the pipes, it features female NPT connections on both sides and is rated for a maximum pressure of 2900 psi at 100°F. Suitable for use in high-temperature steam systems, chemical processing, and other demanding environments, this union meets rigorous standards for materials and performance. Its compact design and easy installation make it an ideal choice for plumbing, HVAC, and piping projects where a secure and leak-free connection is essential.
Top product features:
- The union joins two pipe ends without rotating the pipes.
- The union has female NPT connections on both sides.
- The union is rated for a maximum pressure of 2900 psi at 100°F and a maximum steam pressure of 2500 psi at 350°F.
Top product applications:
- Pipe joining for high-pressure applications
- High-temperature steam piping systems
- Industrial process piping systems requiring Class 3000 rated connections
The ZORO SELECT - 2UA98 is a 3/4-inch stainless steel pipe union constructed from 304 stainless steel, designed to join two pipe ends without rotating the pipes. This union has female NPT connections on both sides. It is rated for a maximum pressure of 2900 psi at 100°F and a maximum steam pressure of 2500 psi at 350°F. It complies with ASTM-A-182 material standards, ANSI/ASME B1.20.1 thread standards, and meets MSS SP-83 specifications.
Key Features:
- - Material: 304 Stainless Steel
- - Pipe Size: 3/4 in nominal
- - Connection Type: Female NPT on both sides
- - Pressure Class: Class 3000 rated
- - Maximum Pressure: 2900 psi @ 100°F
- - Maximum Steam Pressure: 2500 psi @ 350°F
- - Includes body, nut, and mating seat components
- - No pre-applied thread sealant and no sealing component included
- - Meets ASTM-A-182, ANSI/ASME B1.20.1, and MSS SP-83 standards
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.24
- Package Width: 2.09
- Package Height: 2.09
- Package Weight: 1.06
