3" FNPT Galvanized Floor Flange MPN:511-610BC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0974303

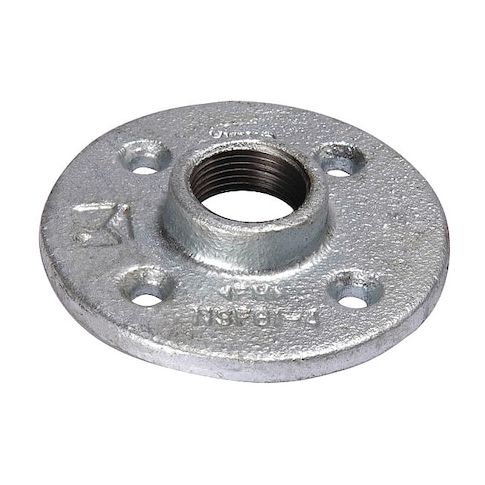

3" FNPT Galvanized Floor Flange
This 3in FNPT Galvanized Floor Flange is a reliable and durable solution for various plumbing and piping applications. Made from high-quality malleable iron and galvanized for added corrosion resistance, it provides a secure connection for pipes up to Schedule 40. Suitable for use in a wide temperature range (-4°F to 572°F) and withstanding pressures up to 300 psi, this flange is ideal for commercial and industrial settings. Its flat design and four bolt holes make installation straightforward, while its compact size (3 15/32 in overall length) saves space in tight areas.
Top product features:
- 3in FNPT connection for easy pipe attachment
- Galvanized coating for corrosion resistance
- Class 150 flange rating for high pressure applications
Top product applications:
- Industrial piping systems
- Steam boiler connections
- High-pressure water supply systems
Flange, Flat, 3 in Nominal Pipe Size, Flanged x FNPT, 7 29/32 in Flange Outside Diameter, 1/4 in Flange Thickness, 3 15/32 in Overall Length, Malleable Iron, Galvanized, Grade A, Class Class 150, For Pipe Schedule Schedule 40, 300 psi @ 77 Degrees F Maximum Operating Pressure, 150 psi Max. Steam Pressure, -4 Degrees F to 572 Degrees F, Number of Bolt Holes 4, Not Applicable Bolt Circle Diameter, 5/8 in Bolt Hole Diameter
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 7.00
- Package Height: 1.00
- Package Weight: 3.76
- California Prop 65 Warning: WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product info last updated on April 8, 2026 3:55am UTC
Category: Pipes, Valves and Fittings
