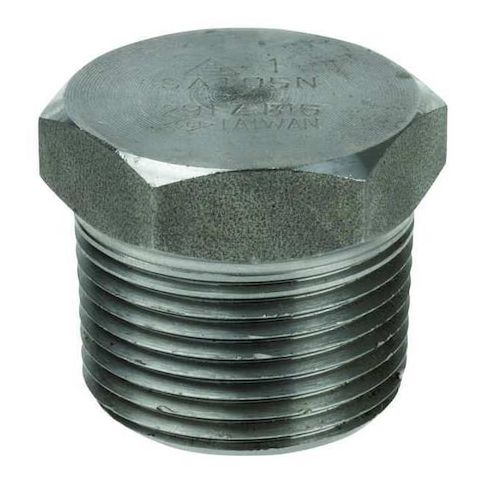

3 in Stainless Steel Hex Head Plug, Class 3000, MNPT, 304 Material MPN:4307000470
This 3-inch stainless steel hex head plug is designed to close off the end of a pipe, fitting, or port, providing a secure and reliable solution for various applications. Constructed from high-quality 304 stainless steel, it offers excellent corrosion and temperature resistance, making it suitable for demanding environments. With a maximum pressure rating of 2,570 psi at 100°F and a maximum steam pressure of 1,965 psi at 350°F, this plug is ideal for use in industries such as chemical processing, oil and gas, and power generation, where reliability and safety are paramount.
Top product features:
- Material grade: 304 stainless steel
- Fitting shape: hex head plug
- Pressure rating: Class 3000
Top product applications:
- Pipe closing off
- Fitting or port sealing
- High-pressure steam system
The ZORO SELECT - 4307000470 is a hex head plug made from 304 stainless steel, designed to close off the end of a pipe, fitting, or port. It features a threaded MNPT connection and conforms to pressure and temperature specifications at specified conditions. This plug is constructed solid and conforms to ASME B16.11 dimensions, ASTM A182 material standards, and ASME B1.20.1 NPT threading standards. It is rated for a maximum pressure of 2,570 psi at 100°F and a maximum steam pressure of 1,965 psi at 350°F, suitable for applications requiring corrosion and temperature resistance. This product should be installed and used in accordance with applicable codes and standards.
Key Features:
- - Material grade: 304 stainless steel
- - Fitting shape: hex head plug
- - Connection type: MNPT threaded end
- - Nominal pipe size: 3 inches
- - Outside diameter: 3-1/2 inches
- - Hex size (across flats): 3-1/2 inches
- - Overall length: 1-15/16 inches
- - Pressure rating: Class 3000
- - Maximum pressure: 2,570 psi @ 100°F
- - Maximum steam pressure: 1,965 psi @ 350°F
- - Plug construction: solid build
- - Plug drive style: 3 inch hex wrench
- - Includes no pre-applied thread sealant or additional seal
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 5.00
- Package Height: 2.30
- Package Weight: 5.39
