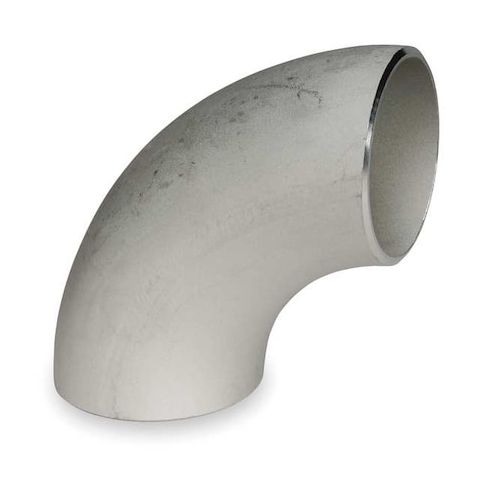

304L Stainless Steel Butt Weld 1-1/2 in 90° Long Radius Elbow Schedule 10 MPN:4381010840
The ZORO SELECT 90 Degree Long Radius Elbow is a versatile and durable stainless steel pipe fitting designed for high-pressure applications. Constructed from 304L stainless steel, it connects two 1-1/2 inch pipes with butt weld ends, suitable for Schedule 10 wall thickness. This fitting is ideal for use in chemical processing, food and beverage, and pharmaceutical industries where corrosion resistance and high pressure tolerance are essential. Its long radius design provides a smooth flow of fluids, reducing turbulence and increasing efficiency. With a maximum operating pressure of 275 psi at 150°F, this elbow is a reliable choice for demanding applications.
Top product features:
- 304L stainless steel construction for corrosion resistance
- Connects two 1-1/2 inch pipes with butt weld ends
- Centerline radius equals 1.5x nominal diameter for smooth flow and reduced turbulence
Top product applications:
- Chemical Processing
- High-Temperature Applications
- Oil and Gas Industry
The ZORO SELECT - 4381010840 is a 90 Degree Long Radius Elbow stainless steel pipe fitting
- centerline radius equals 1.5x nominal diameter
- 90-degree long-radius elbow. Constructed from 304L stainless steel, it connects two 1-1/2 inch pipes with butt weld ends, designed for Schedule 10 wall thickness. The elbow has an overall length of 4 1/2 inches and features a silver finish. It is rated for a maximum operating pressure of 275 psi at 150°F. The fitting’s dimensions and materials conform to ASTM-A-403/A, 403M-88a standards.
Key Features:
- - Material: 304L stainless steel
- - Pipe Size: 1-1/2 inch nominal for both ends
- - Fitting Connection Type: Butt weld on both Side A and Side B
- - Fitting Schedule: Schedule 10
- - Shape: 90 Degree Long Radius Elbow
- centerline radius: 1.5x nominal diameter
- - Maximum Operating Pressure: 275 psi @ 150 Degrees F
- - Overall Length: 4 1/2 inches
- - Color: Silver
- - Standards: Conforms to ASTM-A-403/A, 403M-88a
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 8.30
- Package Height: 6.50
- Package Weight: 6.70
