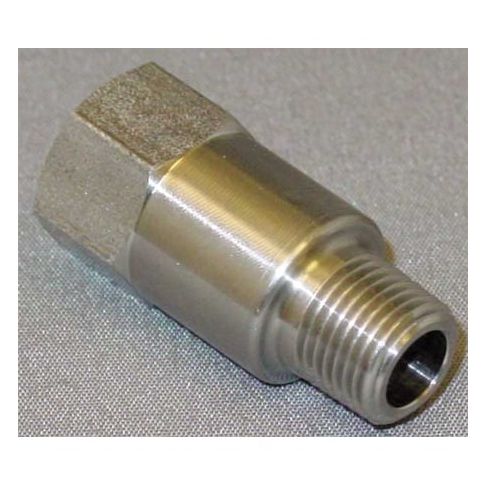

1/8" FNPT x MNPT Stainless Steel Piston Spring Check Valve MPN:CHK SST 210-2F2M-F
Free Shipping
In Stock
This 1/8in FNPT x MNPT Stainless Steel Piston Spring Check Valve is designed for use in a variety of applications where a reliable and corrosion-resistant check valve is required. Its stainless steel construction ensures durability and resistance to high temperatures, making it suitable for use in steam and water systems. The valve's piston design allows for smooth flow and easy installation. Its ability to withstand high pressures and temperatures makes it ideal for use in industrial and commercial settings, including laboratories, medical facilities, and food processing plants. It's also suitable for use in residential applications, such as water treatment systems.
Top product features:
- The valve has a single flow design to allow for efficient fluid flow.
- The valve is constructed with a stainless steel body for durability and resistance to corrosion.
- The valve features a piston spring mechanism to ensure a reliable shut-off and prevent backflow.
Top product applications:
- Automatic Water Temperature Control Systems
- Industrial Process Control Systems
- Medical Equipment Systems that Require High-Purity Water Supply
ZORO SELECT Series 210-2F2M-F is an inline piston spring check valve for compatible air and fluid applications. This 1/8 in valve is configured for one-way flow with a 1 psi cracking pressure. It features a stainless steel body and internal components, a Viton seal, and a stainless steel seat. The valve can be mounted horizontally or vertically.
Key Features:
- Type: Piston spring check valve with inline body design and single-flow path
- Size: 1/8 in nominal valve size with 1/8 in connections on both sides
- Connections: FNPT x MNPT, with female side 1 and male side 2 NPT threads
- Materials: Stainless steel body, piston/check mechanism, seat, and spring
- Seal Material: Viton/FKM
- Pressure Rating: 500 psi maximum operating and water pressure
- Temperature Range: -20 degrees F to 180 degrees F
- Flow Capacity: Cv 0.2
- Mounting Orientation: Horizontal or vertical
- Dimensions: 1.19 in overall length, 0.56 in width, 9/16 in overall height, 9/16 in hex size
- Standards: UL, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.50
- Package Height: 1.00
- Package Weight: 0.23
