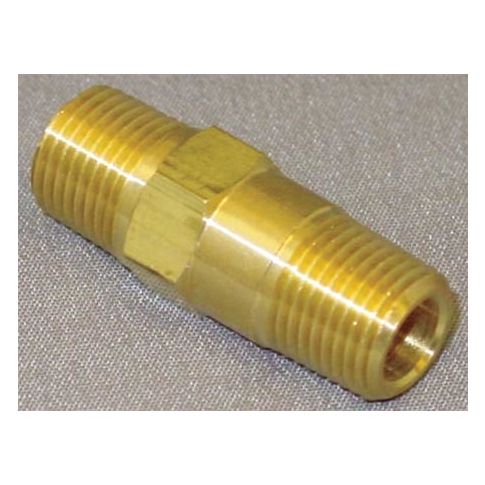

1/8" MNPT Brass Piston Spring Check Valve MPN:CHK BRS 210-2M2M-B
Free Shipping
In Stock
This 1/8in MNPT Brass Piston Spring Check Valve is a reliable and efficient solution for various industrial applications, including water treatment, chemical processing, and HVAC systems. Its single-flow design and inline piston mechanism ensure smooth operation and minimal pressure drop. The valve's cracking pressure of 1 psi allows for precise control, while its maximum water pressure rating of 500 psi ensures durability. Suitable for horizontal and vertical mounting, this valve is ideal for use in applications where a reliable check valve is necessary, such as in steam trap systems, condensate return lines, and water circulation systems.
Top product features:
- Flow Design Single
- Piston Mechanism and Inline Body Design
- Full Flow Capability
Top product applications:
- Pneumatic system pressure relief
- Steam trap in power generation
- Hydraulic system pressure regulation
GoVets Select piston spring check valve with an inline brass body and piston check mechanism. It is configured with a piston spring check mechanism for one-direction flow and backflow control applications. This valve features 1/8 in male NPT x male NPT connections, a 1 psi cracking pressure, and a single full-flow design. It is intended for air and fluid piping systems within the listed pressure and temperature ratings.
Key Features:
- Valve type: Piston spring check valve with inline piston mechanism and inline body style
- Materials: Brass body, brass check mechanism, brass seat, stainless steel spring, and Buna-N seal
- Connections: 1/8 in male NPT x male NPT
- Pressure rating: 500 psi maximum operating pressure
- 500 psi maximum water pressure
- Temperature range: -20 degrees F minimum operating temperature to 180 degrees F maximum operating temperature
- Cracking pressure: 1 psi
- Flow design: Single, full flow
- Mounting orientation: Horizontal or vertical
- Dimensions: 1.19 in overall length, 7/16 in overall height, 7/16 in hex size
- Standards: UL, UR
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.17
