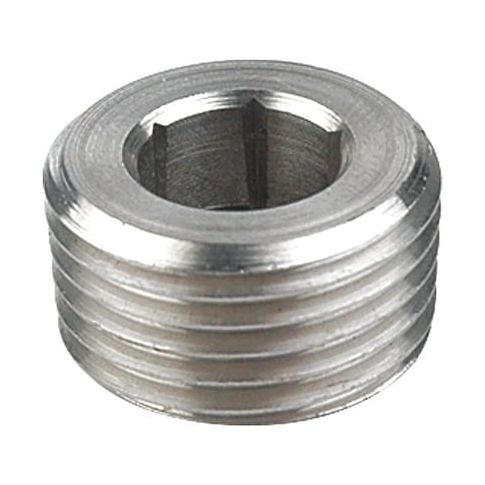

Hex Socket Plug, 1/2 in MNPT, 304 Stainless Steel, Class 150, ASTM A351 MPN:40SP112N012

• The ZORO SELECT - 40SP112N012 is a stainless steel hex socket plug designed to close off the end of a pipe or fitting with a threaded connection. Made from 304 stainless steel and conforming to ASTM A351 standards, corrosion resistance is provided by 304 stainless steel

• temperature service range: -20 to 350 F. It features a 1/2" nominal pipe size and threads with a 1/2"-14 size, compatible with Class 150 pressure-rated piping systems. Sealing capability is not guaranteed by the description
• it is rated for Class 150 piping systems with a maximum operating pressure of 300 psi.

  Key Features:

  • - Material: 304 stainless steel
  • - Fitting Shape: Hex socket plug with internal hex recess for Allen/hex key drive.
  • - Connection Type: Male National Pipe Thread (MNPT) sized at 1/2" - 14 TPI.
  • - Pressure Rating: Class 150 with a maximum operating pressure of 300 psi and a maximum steam pressure of 150 psi.
  • - Size: Nominal pipe size of 1/2 inch
  • Outside diameter should be verified in the dimensional data sheet
  • this description states approximately 1/2 inch.
  • - Temperature Range: -20 to 350 Degrees Fahrenheit.
  • - Hex Size: 3/8 inch across flats for wrench engagement.
  • - Overall Length: 14 mm dimension lengthwise.
  • - Does not include pre-applied thread sealant or any sealing components.
