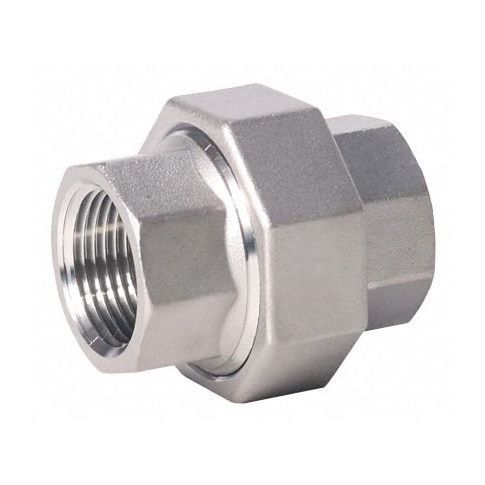

304 Stainless Steel Union, 1 in x 1 in Fitting Pipe Size, Female NPT x Female NPT, Class 150 MPN:400U111N010
Connect and disconnect pipes with ease using the 304 Stainless Steel Union from GoVets Select. This three-piece fitting features female NPT threaded connections on both sides, allowing for joining or disconnection without pipe rotation. Constructed from 304 stainless steel, it's suitable for use with fluids within its chemical compatibility and Class 150 pressure rating. Ideal for applications in chemical processing, power generation, and water treatment, this union offers a reliable and durable solution. Its low lead compliance and MSS-SP-114 Class 150 pressure standards make it suitable for potable water use, ensuring a safe and efficient piping system.
Top product features:
- 304 Stainless Steel construction
- Female NPT threaded connections on both sides
- Class 150 pressure rating with a maximum operating pressure of 300 psi
Top product applications:
- Stainless Steel pipe union for connecting 1-inch pipe ends in chemical processing equipment
- Stainless Steel pipe union for connecting 1-inch pipe ends in high-temperature steam systems
- Stainless Steel pipe union for connecting 1-inch pipe ends in potable water distribution systems
The ZORO SELECT - 400U111N010 is a stainless steel pipe union designed to connect two 1-inch pipe ends through female NPT threaded connections on both sides. This three-piece fitting (body, nut, and mating seat) enables joining or disconnection without requiring pipe rotation, as designed. Constructed from 304 stainless steel
- intended for use with fluids within the device's chemical compatibility and Class 150 pressure rating
- verify fluid compatibility via the material data sheet. It is rated for Class 150 pressure, with a maximum operating pressure of 300 psi and a maximum steam pressure of 150 psi. Key Features:
- - Material: 304 Stainless Steel meeting ASTM-A-351
- threads conform to ASME B1.20.1.
- - Connection Type: Female NPT threaded on both sides with 11 threads per inch.
- - Nominal Pipe Size: 1 inch for both ends
- outside diameter of 1 inch on each side.
- - Pressure Rating: Class 150 with a maximum operating pressure of 300 psi.
- - Hex Size: 52.5 mm across flats for wrench application.
- - Includes no pre-applied thread sealant and no sealing components.
- - Overall Length: 47.5 mm.
- - Compliance: Meets MSS-SP-114 Class 150 pressure standards
- low lead compliant for potable water use.
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.40
- Package Height: 2.20
- Package Weight: 0.90
