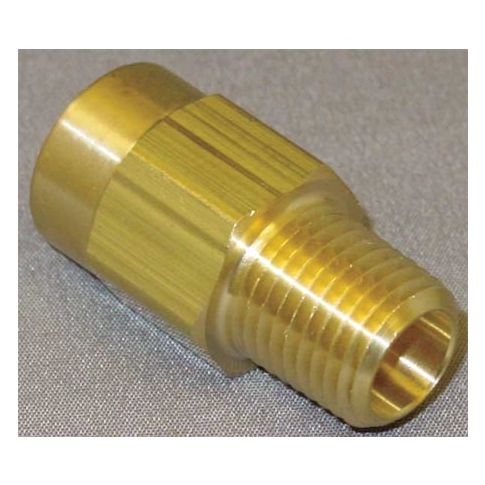

1/4" FNPT x MNPT Brass Piston Spring Check Valve MPN:CHK BRS 410-4F4M-F
Free Shipping
In Stock
This 1/4in FNPT x MNPT Brass Piston Spring Check Valve is a reliable and efficient solution for various applications, including water treatment, chemical processing, and HVAC systems. Its inline piston design allows for full flow, ensuring minimal pressure drop and optimal performance. The valve's brass body and stainless steel spring provide excellent durability and resistance to corrosion. With a cracking pressure of 1 psi and a maximum water pressure of 500 psi, this valve is suitable for a range of applications, including residential and commercial use. Its compact size and lightweight design make it easy to install and maintain.
Top product features:
- Piston design allows for inline installation
- Full flow capability
- Spring-loaded mechanism provides a cracking pressure of 1 psi
Top product applications:
- Water supply systems for residential or commercial use
- Industrial process control and fluid handling systems
- HVAC system applications requiring a check valve to prevent backflow
ZORO SELECT 410 series piston spring check valve is an inline brass check valve for general-purpose air and fluid service. Its spring-loaded piston design allows one-way flow and closes at 1 psi cracking pressure for one-way flow applications. The 1/4 in valve has FNPT x MNPT NPT threaded connections and can be mounted horizontally or vertically.
Key Features:
- Inline piston spring check valve for one-way flow.
- Brass body, brass check mechanism, and brass seat.
- 1/4 in FNPT x MNPT threaded connections
- side 1 female, side 2 male.
- Compatible media: air and fluids.
- Cracking pressure: 1 psi.
- Maximum operating/water pressure: 500 psi.
- Operating temperature range: -20 degrees F to 180 degrees F.
- Seal material: Viton/FKM.
- Spring material: stainless steel.
- Full flow: Yes.
- Cv: 0.6.
- Valve series: 410.
- Overall length: 1.63 in
- overall height: 19/32 in
- hex size: 19/32 in.
- Standards: UL, UR.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.41
