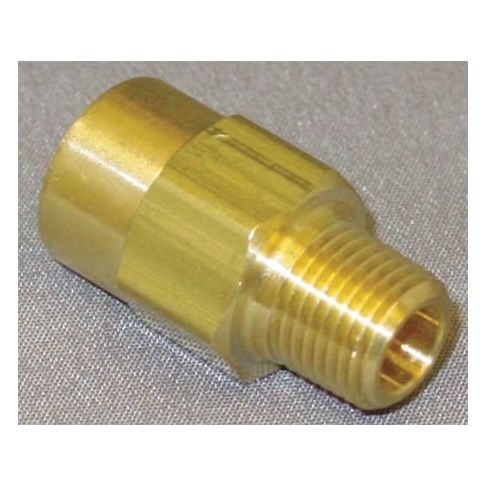

1/2" MNPT x FNPT Brass Piston Spring Check Valve MPN:CHK BRS 810-8M8F-B

ZORO SELECT 810 series check valve is an inline piston spring check valve for general-purpose air and fluid service. Its spring-loaded piston permits flow in one direction and closes when flow slows or reverses for check-valve operation. This brass valve has a 1/2 in nominal size with MNPT x FNPT threaded connections, a 1 psi cracking pressure, and a full-flow design.

Key Features:

• Valve type: Piston spring check valve with inline body design and single flow path.
• Body and internals: Brass body, brass check mechanism, brass seat, Buna-N seal, and stainless steel spring.
• Connections: 1/2 in male NPT x female NPT.
• Pressure rating: 500 psi maximum operating pressure and maximum water pressure.
• Temperature range: -20 degrees F minimum operating temperature to 180 degrees F maximum operating temperature.
• Flow characteristics: Full-flow design with a Cv of 2.2.
• Mounting orientation: Horizontal or vertical.
• Dimensions: 1.88 in overall length, 1 in overall height, 1 in overall width, 1 in hex size.
