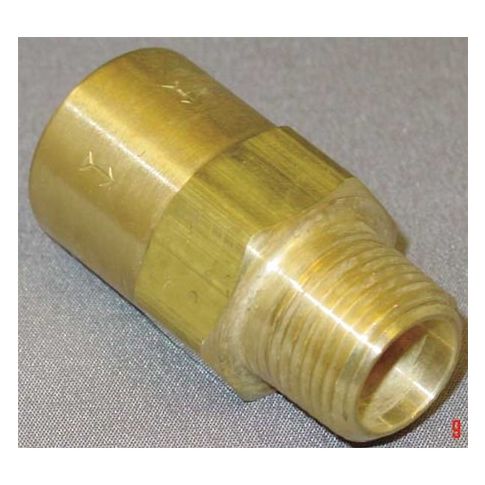

3/8" FNPT x MNPT Brass Piston Spring Check Valve MPN:CHK BRS 610-6F6M-F
Free Shipping
In Stock
This 3/8in FNPT x MNPT Brass Piston Spring Check Valve from GoVets Select is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, it features a single flow design with a cracking pressure of 1 psi. The valve is constructed from high-quality brass and stainless steel materials, ensuring durability and resistance to corrosion. With a maximum temperature range of 180°F and a maximum water pressure of 500 psi, it is ideal for use in plumbing, HVAC, and industrial systems, providing full flow and reliable shut-off in a compact and easy-to-install package.
Top product features:
- It has a single flow design that allows for full flow when open.
- The valve is constructed with a piston mechanism for reliable operation.
- It includes a spring-loaded check valve that prevents backflow.
Top product applications:
- Water Pressure Regulator
- Steam Power Generation System
- Hydraulic System Check Valve
ZORO SELECT series 610 check valve is an inline piston spring check valve for air and fluid service. Its spring-loaded piston allows one-way flow and closes when flow slows or reverses to reduce backflow. This brass valve has a 3/8 in size with FNPT x MNPT NPT connections, a 1 psi cracking pressure, and can be mounted in horizontal or vertical positions.
Key Features:
- Inline piston spring check valve with single-flow design.
- Brass body, brass check mechanism, and brass seat.
- Seal material: Viton/FKM
- spring material: stainless steel.
- Connection size: 3/8 in on both sides.
- Connection type: FNPT x MNPT.
- Maximum operating pressure: 500 psi.
- Temperature range: -20 degrees F to 180 degrees F.
- Full flow: Yes.
- Cv: 1.4.
- Mounting orientation: horizontal or vertical.
- Overall length: 1.69 in
- overall height: 7/8 in
- hex size: 7/8 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.30
- Package Height: 0.90
- Package Weight: 0.86
