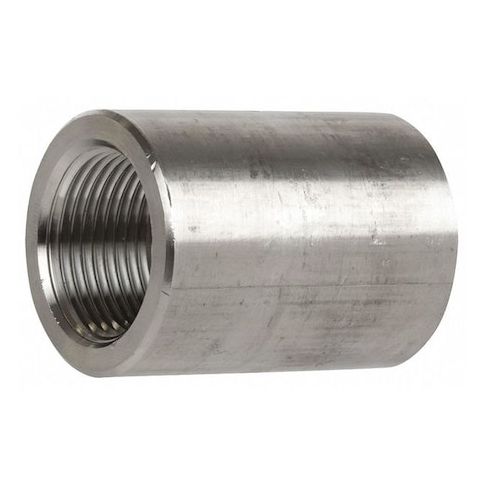

1/4 in FNPT 316 Stainless Steel Coupling, Class 3000, Female-Female MPN:2TY81
Free Shipping
In Stock
The ZORO SELECT - 2TY81 is a reliable and durable stainless steel coupling designed for joining two pipes or tubes in a straight line, creating a continuous flow path. Manufactured from 316 stainless steel, this fitting is perfect for high-pressure applications, withstanding internal pressures up to 3000 psi at 100°F and steam pressures up to 2500 psi at 350°F. Suitable for use in industrial, commercial, and residential settings, this coupling is ideal for plumbing, HVAC, and piping systems, offering a secure and leak-free connection. Its compact design and easy installation make it a great choice for a variety of applications.
Top product features:
- Manufactured from 316 stainless steel for corrosion resistance and durability.
- Threaded with female NPT connections on both ends for secure and leak-free joining.
- Rated for internal pressure up to 3000 psi at 100 degrees Fahrenheit and steam pressure up to 2500 psi at 350 degrees Fahrenheit.
Top product applications:
- Steam System
- Chemical Processing
- Food Processing
The ZORO SELECT - 2TY81 is a stainless steel coupling designed to join two pipes or tubes in a straight line to create a continuous flow path. Manufactured from 316 stainless steel, this fitting is threaded with female NPT connections on both ends, each sized for 1/4 inch nominal pipe. It is rated for internal pressure up to 3000 psi at 100 degrees Fahrenheit and steam pressure up to 2500 psi at 350 degrees Fahrenheit.
Key Features:
- - Material: 316 stainless steel
- - Shape: Coupling, used to join two pipes inline.
- - Connection Type: Female NPT threaded ends on both sides.
- - Nominal Pipe Size: 1/4 inch for both connection ends.
- - Pressure Rating: Class 3000
- - Max. Pressure: 3000 psi at 100 degrees Fahrenheit.
- - Max. Steam Pressure: 2500 psi at 350 degrees Fahrenheit.
- - Standards: Material conforms to ASTM-A-182, threads conform to ANSI/ASME B1.20.1, and meets ASME B16.11.
- - Does not include pre-applied thread sealant or additional seals.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.75
- Package Width: 0.75
- Package Height: 1.38
- Package Weight: 0.09
