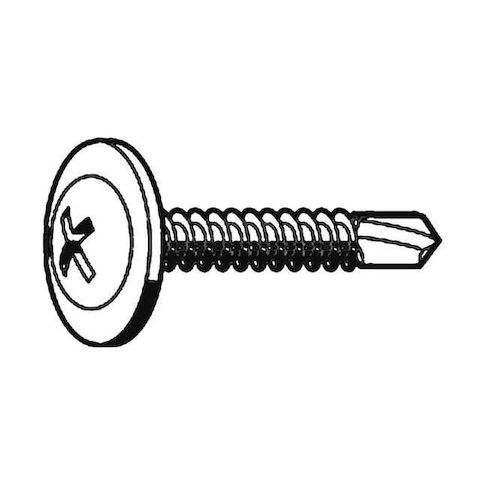

Self-Drilling Screw, #8 x 1-1/4 in, Zinc Plated Steel Wafer Head Phillips Drive, 100 PK MPN:U29580.016.0125
Free Shipping
In Stock
Elevate your industrial and commercial projects with the ZORO SELECT - U29580.016.0125 self-drilling screw. Designed for steel-to-steel applications, these screws feature a drill point at the end, allowing for direct installation without pre-drilled holes. With a zinc-plated finish, they provide durability, corrosion resistance, and improved grip. Suitable for metal fabrication, construction, and assembly, these screws ensure secure fastening in various industrial settings. Their wafer head design and fully threaded style promote load distribution and secure holding power. Ideal for applications where strength and reliability are crucial, these screws deliver exceptional performance and value.
Top product features:
- Self-drilling capability allows the screw to be driven directly into materials without pre-drilled holes.
- Zinc Plated finish improves durability, corrosion resistance, and functional properties such as grip or reduced friction during installation.
- Fully threaded style promotes secure fastening along the entire length of the screw.
Top product applications:
- Industrial and commercial settings
- Metal fabrication
- Construction
The ZORO SELECT - U29580.016.0125 is a self-drilling screw designed for steel-to-steel applications. These screws are equipped with a drill point at the end, allowing them to be driven directly into materials without the need for pre-drilled holes. They are commonly used in industrial and commercial settings such as metal fabrication, construction, and assembly.
- Application: Intended for use in steel-to-steel fastening tasks.
- CAD Available: A Computer-Aided Design (CAD) file is available for accurate project planning.
- Drive & Size: Requires a Phillips #2 drive tool for installation or removal.
- Fastener Length: Measures 1-1/4 inches in length, determining its penetration depth and securing capacity.
- Finish: Zinc Plated finish is intended to improve durability, corrosion resistance, and functional properties such as grip or reduced friction during installation.
- Head Type & Dimensions: Features a wafer head type with a diameter of 0.380 inches which may aid in load distribution in applications.
- Material & Maximum Drilling Thickness: Made from steel with maximum drilling thickness of 0.136 inches suggesting potential strength and suitability for certain industrial applications
- Screw Size & Thread Style: The #8 screw size represents width and thread count
- fully threaded style is intended to promote secure fastening along the entire length of the screw
- TIP Type & Standards Compliance : Equipped with BSD tip type that could be suitable for various industrial applications
- adheres to SAE J78 standards indicating compliance with established technical specifications
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 12.99
- Package Width: 6.77
- Package Height: 1.00
- Package Weight: 0.70
