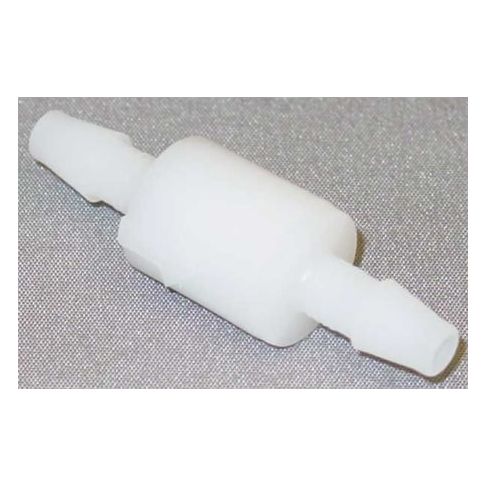

3/16" Barb White Nylon Ball Cone Spring Check Valve MPN:WN CHK 695-3B3B-F
Free Shipping
In Stock
This 3/16in Barb White Nylon Ball Cone Spring Check Valve is a reliable and efficient solution for various applications, including water treatment, chemical processing, and HVAC systems. Its single flow design and inline ball cone mechanism ensure smooth and unobstructed flow, while the stainless steel spring and Viton seal provide long-lasting durability and resistance to corrosion. With a maximum water pressure of 125 psi and a temperature range of -20 to 140°F, this valve is suitable for a wide range of environments. Its compact size and lightweight design make it easy to install and maintain, making it an ideal choice for various industrial and commercial applications.
Top product features:
- The valve is designed with a single flow path to minimize restriction and ensure full flow capacity.
- The check valve features a ball cone mechanism that allows for smooth and reliable operation.
- The valve is constructed with a stainless steel spring and Viton seal to provide long-lasting durability and resistance to extreme temperatures.
Top product applications:
- Cooling systems
- Pneumatic systems
- Hydraulic systems
Zoro Select ball cone spring check valve is an inline, single-flow check valve for use with compatible water and corrosive chemical media within the specified ratings. It uses a spring-loaded ball mechanism intended for one-way flow applications and closure when flow stops or reverses. The valve features a white nylon body with barb x barb connections, 3/16 in connection size on both ends, and a full-flow design for fluid handling applications requiring the listed dimensions.
Key Features:
- Valve type: Ball cone spring check valve with inline body design
- Connection type: Barb x Barb
- Connection size: 3/16 in x 3/16 in
- Body material: White nylon
- Check mechanism: Ball
- Cracking pressure: 1 psi
- Pressure rating: 125 psi maximum operating/water pressure
- Temperature range: -20 Degrees F to 140 Degrees F
- Media compatibility: Corrosive chemicals, water
- Seal materials: FKM/Viton, PTFE
- Seat material: Nylon
- Spring material: Stainless steel
- Mounting orientation: Horizontal or vertical
- Overall size: 1.72 in length, 1/2 in height, 1/2 in width
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.05
