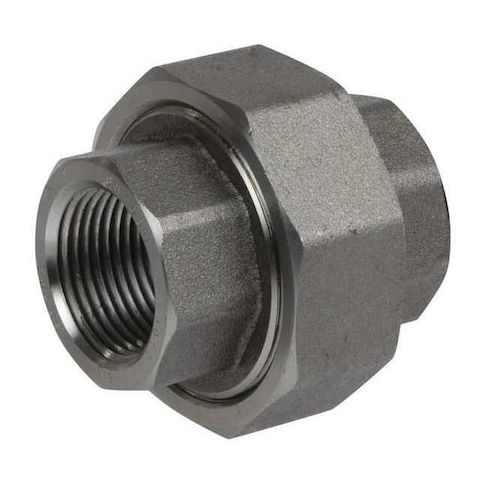

1/4 in FNPT 316 Stainless Steel Threaded Union, Class 3000 MPN:2UA37
Free Shipping
In Stock
This 1/4 in FNPT 316 Stainless Steel Threaded Union is a reliable and versatile connection solution for industrial, sanitary, and high-temperature piping systems. Constructed from corrosion-resistant 316 stainless steel, it ensures a secure and leak-free connection, even in harsh environments. With a maximum working pressure rating of 2,900 psi at 100°F and steam pressure up to 2,500 psi at 350°F, it meets the demands of various applications, including chemical processing, food and beverage, and pharmaceutical industries. Its ease of disassembly and conforming to industry standards make it a convenient and trustworthy choice for engineers and technicians.
Top product features:
- Three-piece mechanical fitting (body, nut, mating seat) for easy disassembly
- Female NPT threaded connections on both ends, nominal pipe size 1/4 inch
- Made from corrosion-resistant 316 stainless steel alloy
Top product applications:
- Industrial piping systems
- Sanitary piping systems
- High-temperature piping systems
The ZORO SELECT - 2UA37 is a stainless steel pipe union designed to be connected to join two 1/4-inch pipe ends with 18 TPI female NPT threaded connections, and is designed to allow connection or disconnection without rotating the pipes. Constructed from 316 stainless steel, it is designed for use in industrial, sanitary, or high-temperature piping systems within specified parameters. The union complies with ASTM A182 material standards and ANSI/ASME B1.20.1 thread specifications and meets MSS SP-83 requirements. It has a maximum working pressure rating of 2,900 psi at 100°F and a maximum steam pressure of 2,500 psi at 350°F.
Key Features:
- - Three-piece mechanical fitting (body, nut, mating seat) for easy disassembly
- - Female NPT threaded connections on both ends, nominal pipe size 1/4 inch
- - Made from corrosion-resistant 316 stainless steel alloy
- - Rated for use within pressure class 3000, up to 2,900 psi at 100°F
- - Rated for steam pressure up to 2,500 psi at 350°F
- - Threads conform to ANSI/ASME B1.20.1 standard
- - Material conforms to ASTM A182 and meets MSS SP-83
- - Does not include thread sealant or sealing elements
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.63
- Package Width: 1.34
- Package Height: 1.34
- Package Weight: 0.62
