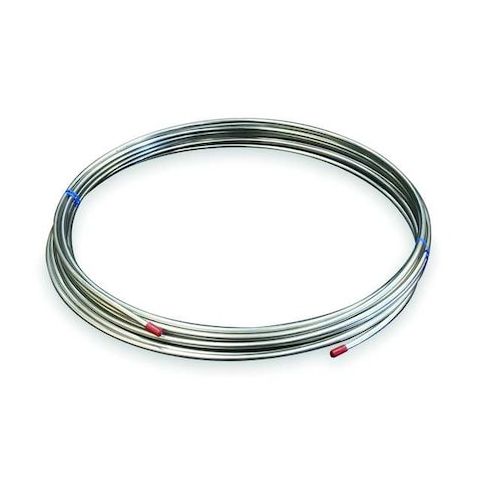

1/8" OD x 50 ft. Welded 316 Stainless Steel Coil Tubing MPN:ZUSA-HTM-135
1/8" OD x 50 ft. Welded 316 Stainless Steel Coil Tubing
This 1/8in OD x 50 ft. Welded 316 Stainless Steel Coil Tubing is ideal for use in high-temperature and corrosive environments. Its corrosion-resistant and pitting-resistant properties make it suitable for applications in chemical processing, pharmaceutical, and food processing industries. The tubing's high operating temperature of 1,500 Degrees F and maximum operating pressure of 3,923 psi make it suitable for use in heat exchangers, condensers, and other high-pressure equipment. Its compact design and flexible coil form make it easy to install and maneuver in tight spaces, reducing installation time and costs.
Top product features:
- Corrosion Resistant
- Pitting Resistant
- Welded construction for strength and durability
Top product applications:
- Chemical Processing: The 1/8in OD x 50 ft. Welded 316 Stainless Steel Coil Tubing is suitable for use in chemical processing applications due to its corrosion resistant properties and ability to withstand high temperatures.
- Oil and Gas Industry: The tubing's high maximum operating pressure and temperature make it suitable for use in oil and gas industry applications such as drilling and extraction.
- Heat Exchangers: The 316 stainless steel coil tubing's high temperature resistance and corrosion resistant properties make it suitable for use in heat exchangers, where it can withstand high temperatures and corrosive fluids.
Tubing, Cleaned and Capped No, Fabrication Welded, Inside Diameter 0.085 in, Material 316 Stainless Steel, Material Grade 316, Maximum Operating Pressure 3,923 psi @ 72 Degrees F, Maximum Operating Temperature 1,500 Degrees F, Outside Diameter 1/8 in, Overall Length 50 ft, Resistance Properties Corrosion Resistant, Pitting Resistant, Standards ASTM 269, Temper Annealed, Tube Form Coil, Wall Thickness 0.02 in, System of Measurement Inch, Minimum Operating Temperature -325 Degrees F
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.00
- Package Width: 22.00
- Package Height: 1.00
- Package Weight: 1.64
Product info last updated on January 30, 2026 11:47pm UTC
Category: Pipes, Valves and Fittings
