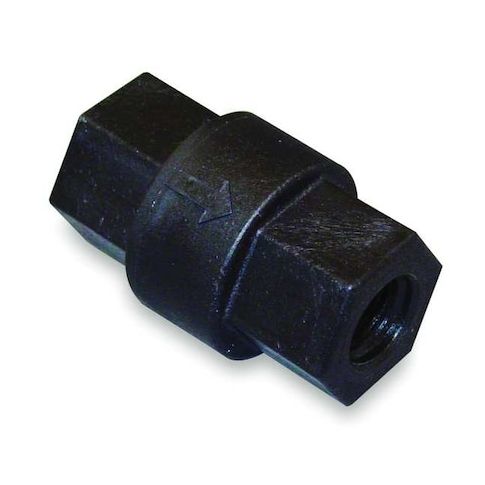

1/4" FNPT Ball Cone Spring Check Valve MPN:FP CHK 694-4F4F-B
Free Shipping
In Stock
The 1/4in FNPT Ball Cone Spring Check Valve from GoVets Select is a reliable and efficient solution for various applications. This inline check valve features a single flow design and is constructed with glass-filled polypropylene for durability and resistance to corrosion. Suitable for use in horizontal and vertical orientations, it allows for smooth fluid flow while preventing backflow and pressure loss. Ideal for applications in water treatment, HVAC, and industrial processes, this valve can withstand maximum water pressures of 125 psi and temperatures ranging from -20°F to 140°F, making it a versatile and dependable choice for a wide range of industries.
Top product features:
- Has a single flow design to minimize fluid resistance
- Features an inline ball cone mechanism for easy installation and maintenance
- Has a cracking pressure of 0.33 psi to prevent backflow and ensure safe operation
Top product applications:
- Water Treatment Systems
- Steam Trap Protection
- Drainage Systems
ZORO SELECT Series 694 ball cone spring check valve is an inline, single-flow check valve for general-purpose air and fluid service. It uses a spring-loaded poppet-style check mechanism intended for one-way flow applications and closure when flow stops or reverses. This 1/4 in. valve has FNPT x FNPT connections, a glass-filled polypropylene body and seat, and a Buna-N seal in a compact 1 in. long design.
Key Features:
- Ball cone spring check valve with inline body style and single-flow design
- 1/4 in. FNPT x FNPT connections with female threads on both ends
- Glass-filled polypropylene body and seat
- Buna-N seal
- Poppet check mechanism
- Stainless steel spring
- 0.33 psi cracking pressure
- 125 psi maximum operating pressure
- Temperature range: -20 degrees F to 140 degrees F
- Horizontal or vertical mounting orientation
- Cv 2.3 flow capacity
- Full-flow design
- Overall size: 1 in. length
- 1 15/64 in. height and width
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.00
- Package Height: 1.40
- Package Weight: 0.25
