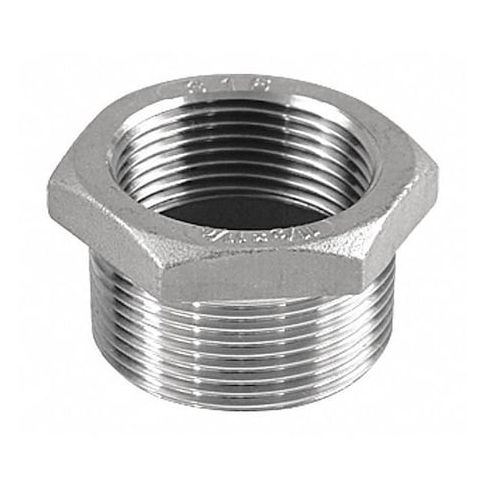

2" x 1-1/2" MNPT x FNPT 304 SS Hex Bushing MPN:400B113N020112

• The ZORO SELECT - 400B113N020112 is a stainless steel hex bushing designed to connect pipes or fittings of different sizes by reducing the nominal pipe size from 2 inches to 1½ inches. It features male NPT threads on the larger side and female NPT threads on the smaller side, allowing it to screw into a larger fitting and provide a smaller threaded opening. Constructed from 304 stainless steel and rated Class 150, this fitting is rated for use with Air, Natural Gas, Non-Potable Water, Oil, Potable Water, and Steam, and has maximum operating pressure: 300 psi

• maximum steam pressure: 150 psi. The hexagonal shape provides a wrenching surface to facilitate installation and removal.

  Key Features:


  • - Material: 304 stainless steel.
  • - Connection types: Male NPT (2 in) to Female NPT (1½ in).
  • - Pressure rating: Class 150
  • Maximum operating pressure: 300 psi
  • Maximum steam pressure: 150 psi.
  • - Rated for use with: Air, Natural Gas, Non-Potable Water, Oil, Potable Water, and Steam.
  • - Hex size: 62.5 mm wrench flats for tightening.
  • - Meets ASTM-A-351 material standards, ANSI/ASME B1.20.1 threading standards, and MSS-SP-114 Class 150 pressure rating standards.
  • - Pipe schedule compatibility: Schedule 40.
  • - Overall length: 35.5 mm.
  • - Does not include pre-applied thread sealant or sealing components.
  • - Compliant with low lead requirements for potable water systems.
