1/4" MNPT x FNPT Stainless Steel Piston Spring Check Valve MPN:CHK SST 410-4M4F-F
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0666233

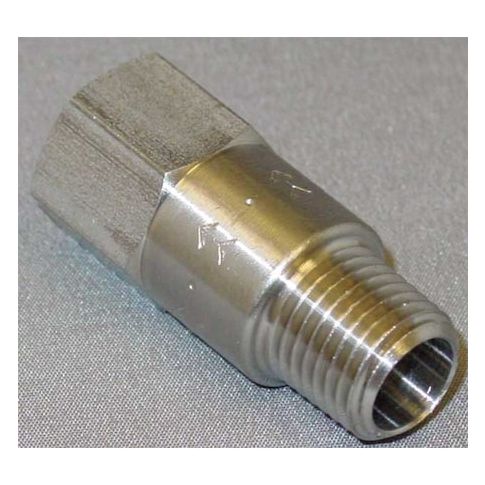

1/4" MNPT x FNPT Stainless Steel Piston Spring Check Valve
ZORO SELECT Series 410 check valve is an inline piston spring check valve for compatible air and fluid applications. Its spring-loaded piston check mechanism is intended for one-way flow control and to help reduce backflow when flow slows or reverses. This stainless steel valve has a 1/4 in nominal size with MNPT x FNPT threaded connections, a 1 psi cracking pressure, and a mounting orientation of horizontal or vertical.
Key Features:
- Inline piston spring check valve for one-way flow control
- Body material: Stainless steel
- Check mechanism: Piston
- Mechanism material: Stainless steel
- Connection type: 1/4 in MNPT x FNPT
- Flow design: Single
- Full flow: Yes
- Cracking pressure: 1 psi
- Maximum operating pressure: 500 psi
- Operating temperature range: -20 Degrees F to 180 Degrees F
- Seal material: FKM/Viton
- Seal: TFE, carbon filled
- Seat material: Stainless steel
- Spring material: Stainless steel
- Mounting orientation: Horizontal, Vertical
- Valve body style: Inline
- Type: Piston design
- Standards: UL, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.00
- Package Height: 0.80
- Package Weight: 0.49
Product info last updated on February 24, 2026 11:57am UTC
Category: Pipes, Valves and Fittings
