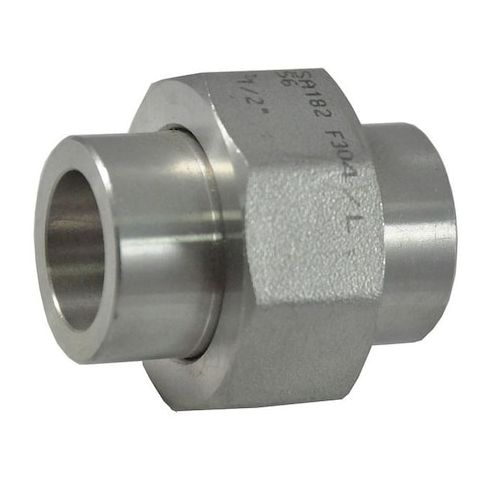

3/4 in 316 Stainless Steel Socket Weld Union, Class 3000 MPN:2UB74
The ZORO SELECT - 2UB74 is a reliable 3/4 in 316 Stainless Steel Socket Weld Union designed for piping system assembly and disassembly without pipe rotation. Made from corrosion-resistant 316 stainless steel, it ensures a pressure-tight seal in demanding environments. Ideal for industrial, sanitary, and high-temperature piping systems, it can withstand maximum pressures of 2900 psi at 100°F and steam pressures up to 2500 psi at 350°F. Its socket weld connection type and Class 3000 rating make it a versatile and durable solution for a wide range of applications, including chemical processing, oil and gas, and food and beverage industries.
Top product features:
- Corrosion-resistant 316 stainless steel construction
- Three-piece construction (body, nut, and mating seat or gasket) ensures a pressure-tight seal
- Socket weld connection type for secure pipe attachments
Top product applications:
- Industrial piping systems
- Sanitary piping systems
- High-temperature piping systems
The ZORO SELECT - 2UB74 is a stainless steel pipe union designed for piping system assembly and disassembly without pipe rotation. Made from corrosion-resistant 316 stainless steel, it features a three-piece construction (body, nut, and mating seat or gasket) that ensures a pressure-tight seal. It can be used in industrial, sanitary, and high-temperature piping systems. Available with socket weld connection type and rated for a maximum pressure of 2900 psi at 100°F, this union provides reliable performance in demanding environments.
Key Features:
- - Material Grade: 316 Stainless Steel, offering corrosion resistance and durability
- - Max. Pressure: 2900 psi at 100°F, indicating operational pressure limit
- - Max. Steam Pressure: rated for steam pressures up to 2500 psi at 350°F
- - Connection Type: Socket Weld, for secure pipe attachments
- - Fitting Schedule/Class: Class 3000
- - Fitting Side A and B: Female gender, 3/4" nominal pipe size, with 14 threads
- - Fitting Side A and B Type: Socket connection, facilitating pipe joining
- - Fittings Sub-Category: Unions, designed for quick assembly/disassembly
- - Standards: Meets ASTM-A-182 and MSS SP-83 specifications
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.24
- Package Width: 2.09
- Package Height: 2.09
- Package Weight: 1.08
