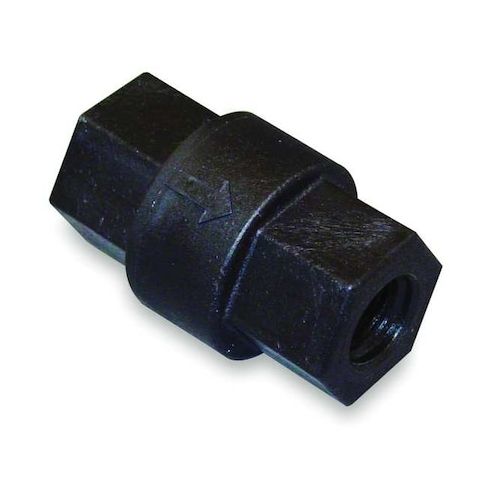

1/4" Glass Filled Polypropylene Ball Cone Spring Check Valve MPN:FP CHK 694-4F4F-F
Free Shipping
In Stock
This 1/4in Glass Filled Polypropylene Ball Cone Spring Check Valve is a reliable and efficient solution for various applications, including water treatment, chemical processing, and HVAC systems. Its single flow design and inline ball cone mechanism ensure smooth operation and minimal pressure drop. The valve's glass filled polypropylene construction provides excellent durability and resistance to corrosion, while its Viton seal ensures a tight shut-off. Suitable for horizontal and vertical mounting, this valve can handle water pressures up to 125 psi and temperatures from -20°F to 140°F, making it an ideal choice for a wide range of industrial and commercial applications.
Top product features:
- Glass-filled polypropylene construction provides high strength and durability
- The valve has a cracking pressure of 0.33 psi, allowing for precise control over fluid flow
- The inline ball cone design allows for horizontal or vertical mounting and easy installation
Top product applications:
- Hydraulic systems
- Chemical processing
- Water treatment plants
ZORO SELECT Series 694-4F4F-F is a 1/4 in inline ball cone spring check valve with FNPT x FNPT female connections. It is intended for air and fluid applications compatible with the listed materials and ratings. This valve is intended to allow flow in one direction and close when flow stops or reverses. The glass-filled polypropylene body, poppet check mechanism, and 0.33 psi cracking pressure are suited for inline check valve applications requiring a 0.33 psi cracking pressure.
Key Features:
- 1/4 in nominal valve size with 1/4 in FNPT x FNPT female connections
- Inline body style with single-flow design
- Glass-filled polypropylene body and seat
- Poppet check mechanism with ball cone design
- Seal materials: FKM/Viton and carbon-filled TFE
- Stainless steel spring
- Full flow
- Cracking pressure: 0.33 psi
- Maximum operating pressure: 125 psi
- Operating temperature range: -20 degrees F to 140 degrees F
- Mounting orientation: horizontal or vertical
- Overall length: 1 in
- Overall height/width and hex size: 1 15/64 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 4.50
- Package Height: 1.30
- Package Weight: 0.25
