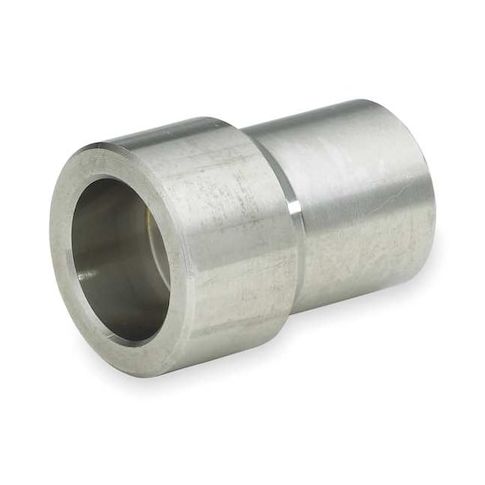

Reducing Insert, 1-1/4 in x 1 in, Socket Weld, 304L Stainless Steel, Class 3000 MPN:4307004540

• A stainless steel reducing socket weld insert for 1-1/4 in x 1 in nominal pipe size connections. Constructed from 304 stainless steel and compatible with Schedule 80 piping, this socket weld fitting features female socket connections on both ends. Maximum pressure rating: 3000 psi

• Maximum steam pressure: 2810 psi at 350 °F. The overall length of the fitting is 2 1/8 inches, with the larger end having an outside diameter of 1-1/4 inches. Standards compliance: ISO 9001:2008
• ASTM A182
• ASME B16.11
• MSS SP-79
• Class 3000 pressure rating.

  Key Features:

  • - Material: 304 stainless steel
  • - Pipe Sizes: 1-1/4 in x 1 in nominal sizes
  • - Connection Type: Socket weld with female sockets on both sides
  • - Pressure Ratings: Maximum pressure rating: 3000 psi
  • Maximum steam pressure: 2810 psi @ 350 °F
  • - Overall length: 2 1/8 in
  • - Outside diameter at larger end: 1-1/4 in
  • - Pipe Schedule Compatibility: Schedule 80
  • - Standards: ISO 9001:2008
  • ASTM A182
  • ASME B16.11
  • MSS SP-79
  • - Fitting Shape: Reducing Insert (Reducer)
