Pulley Block, Wire Rope, 5/16 in Max Cable Size, 1, 550 lb Max Load, Zinc Plated MPN:4JX83

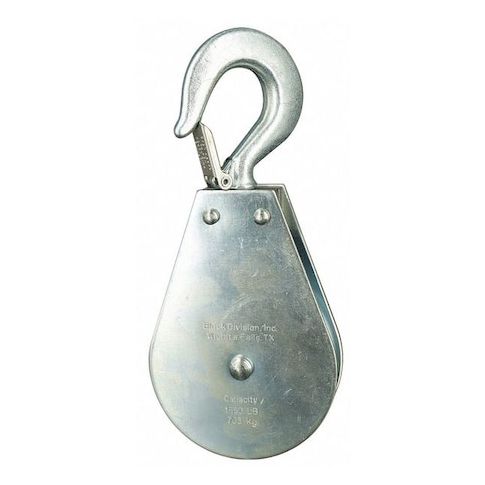

Pulley Block, Wire Rope, 5/16 in Max Cable Size, 1, 550 lb Max Load, Zinc Plated
The GoVets Select Pulley Block is a reliable and durable tool for heavy-duty lifting and pulling applications. With a maximum load capacity of 1,550 lbs and a swivel design, it allows for smooth and efficient rope movement. The pulley block is designed for use with wire rope up to 5/16 inches in diameter, making it suitable for a variety of applications including construction, mining, and industrial settings. Its zinc-plated steel construction ensures resistance to corrosion and wear, providing a long-lasting solution for demanding tasks. It's ideal for use in harsh environments and heavy-duty operations.
Top product features:
- Pulley block with swivel type allows for smooth and easy rope rotation
- Housing made of carbon steel provides durability and long-lasting performance
- Sheave with 3.5 inch outside diameter and 3 inch inside diameter enables efficient rope wrapping and reduces wear on the wire rope
Top product applications:
- Construction hoisting and lifting
- Rigging and lifting in warehouses and factories
- Heavy-duty material handling in industrial settings
Pulley Block, Product Type Pulley Block, Pulley Type Swivel, Mount Type Upright Mount, Working Load Limit 1,550 lb, Operation Pulling, Attachment Type Swivel Hook, Compatible Rope Diameter 5/16 in, Sheave Inside Diameter 3 in, Sheave Depth 5/8 in, Sheave Outside Diameter 3 1/2 in, Compatible Rope Type Wire Rope, Bearing Type Sleeve, Attachment Inside Diameter 13/16 in, Housing Material Carbon Steel, Mounting Hole Diameter 13/16 in, Number of Grooves 1, Sheave Material Steel
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.30
- Package Width: 5.50
- Package Height: 1.10
- Package Weight: 3.05
Product info last updated on March 13, 2026 6:18pm UTC
Category: Lifting, Pulling and Positioning
