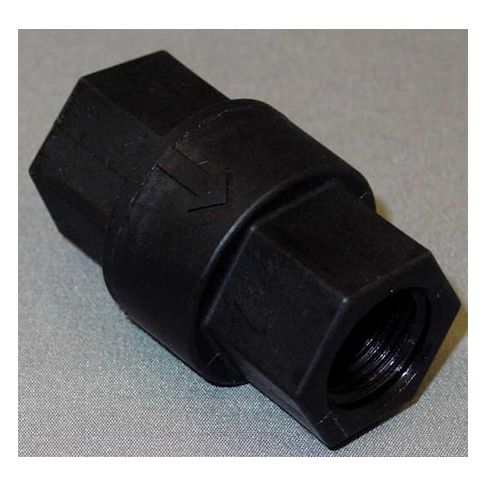

3/8" FNPT Ball Cone Spring Check Valve MPN:FP CHK 693-6F6F-F
Free Shipping
In Stock
This 3/8in FNPT Ball Cone Spring Check Valve from GoVets Select is a reliable solution for various applications where fluid flow control is necessary. Its single-flow design allows for efficient operation in horizontal and vertical orientations, making it suitable for use in plumbing, HVAC, and industrial systems. The valve's glass-filled polypropylene construction ensures durability and resistance to extreme temperatures, ranging from -20°F to 140°F. With a cracking pressure of 0.33 psi, this check valve is ideal for applications requiring minimal pressure drop, such as in water treatment and irrigation systems. Its compact design and lightweight construction make it easy to install and maintain.
Top product features:
- Flow design is single
- Mechanism and body design is inline ball cone
- Seal material is Viton
Top product applications:
- Industrial Water Treatment Systems
- Steam Power Generation Systems
- Hydraulic Systems
ZORO SELECT series 693 ball cone spring check valve is an inline, single-flow check valve for general-purpose air and fluid service. It uses a spring-loaded poppet mechanism to allow flow in one direction and closes at a 0.33 psi cracking pressure for reverse-flow control applications. The valve features a glass-filled polypropylene body and seat with 3/8 in FNPT female connections on both ends.
Key Features:
- Valve type: Ball cone spring check valve with inline body design
- Connection size and type: 3/8 in FNPT x FNPT, female on both sides
- Body material: Glass-filled polypropylene
- Seat material: Glass-filled polypropylene
- Check mechanism: Spring-loaded poppet
- Flow design: Single flow
- full flow
- Media: Air, fluids
- Cracking pressure: 0.33 psi
- Maximum operating pressure: 125 psi
- Operating temperature range: -20 degrees F to 140 degrees F
- Seal material: FKM/Viton
- seal: TFE, carbon filled
- Spring material: Stainless steel
- Mounting orientation: Horizontal or vertical
- Overall length: 2 in
- Overall height: 1 15/64 in
- Hex size: 15/16 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 5.50
- Package Height: 1.20
- Package Weight: 0.23
