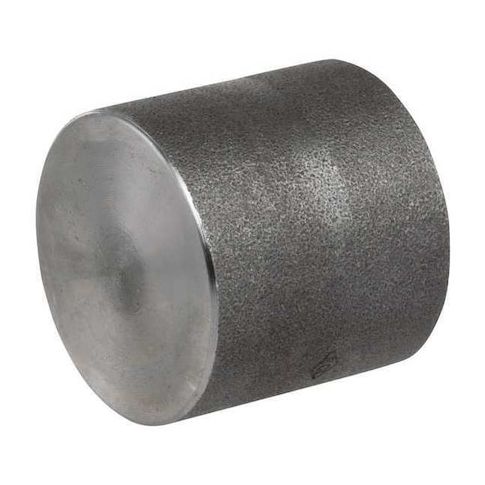

3/4 in FNPT 316 Stainless Steel Cap, Class 3000, ASTM A182, ANSI B1.20.1 MPN:2TY78
Free Shipping
In Stock
Elevate your piping system with the ZORO SELECT - 2TY78, a premium 316 stainless steel pipe cap designed for line termination and pressure testing. Constructed from corrosion-resistant 316 stainless steel, this cap ensures durability and reliability in high-pressure applications. Rated for Class 3000 and conforming to ASTM-A-182 and ANSI/ASME B1.20.1 standards, it withstands maximum pressures of 3000 psi at 100°F and 2500 psi at 350°F. Ideal for industries requiring precision and safety, this cap is perfect for use in chemical processing, oil and gas, and pharmaceutical applications, where sealing pipe ends is crucial for efficient and safe operation.
Top product features:
- Made of 316 stainless steel for corrosion resistance and durability
- Fitting schedule/class rated at Class 3000 for high-pressure applications
- Conforms to ASTM-A-182 standards and threads conform to ANSI/ASME B1.20.1 standards
Top product applications:
- Line termination
- Pressure testing
- Sealing pipe ends
The ZORO SELECT - 2TY78 is a stainless steel pipe cap made of 316 stainless steel with a threaded connection for pipe sealing. It features a rated operation of up to 3000 psi at 100°F and 2500 psi at 350°F based on specified standards, and a maximum steam pressure of 2500 psi at 350°F. The cap is rated for nominal size 3/4 inch with FNPT connection
- intended for line termination and pressure testing.
Key Features:
- - Made of 316 stainless steel for corrosion resistance and durability
- - Fitting schedule/class rated at Class 3000 for high-pressure applications
- - Connection type: FNPT (female national pipe thread)
- - Conforms to ASTM-A-182 standards and threads conform to ANSI/ASME B1.20.1 standards
- - Rated for maximum pressures specified at designated temperatures within tested standards
- - Nominal pipe size: 3/4 inch
- - Specific shape: Cap, designed to seal pipe ends
- - Material grade: 316 Stainless Steel
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.38
- Package Width: 1.38
- Package Height: 1.46
- Package Weight: 1.76
