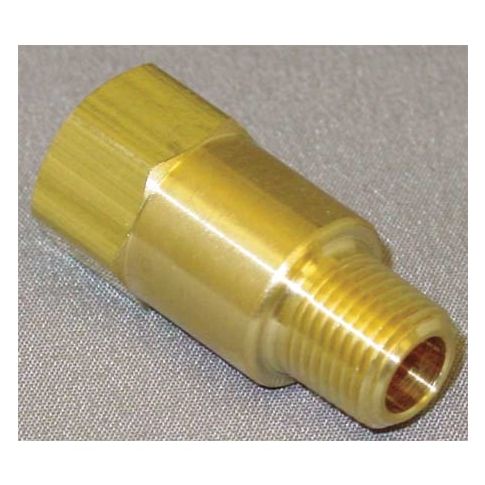

1/8" MNPT x FNPT Brass Piston Spring Check Valve MPN:CHK BRS 210-2M2F-F
Free Shipping
In Stock
The GoVets Select 1/8in MNPT x FNPT Brass Piston Spring Check Valve is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, this valve features a single flow design and inline piston mechanism, ensuring smooth operation and minimal pressure drop. Its brass body and stainless steel spring ensure durability and resistance to corrosion, while the Viton seal provides a tight seal up to 500 psi. Ideal for use in water and steam systems, this valve is perfect for applications where precise control and reliability are critical, such as in industrial processes, medical equipment, and laboratory settings.
Top product features:
- 1/8in MNPT x FNPT Brass Piston Spring Check Valve has a cracking pressure of 1 psi.
- The valve is designed for full flow, allowing unobstructed passage of fluid when not in the closed position.
- The valve's body and seat are made of brass, providing a durable and corrosion-resistant construction.
Top product applications:
- Pressure Relief System
- Steam Trap Replacement
- Hydraulic System Check Valve
ZORO SELECT Series 210 check valve is an inline piston spring check valve for air and compatible fluid service. It uses a spring-loaded brass piston intended to permit flow in one direction and restrict reverse flow. This 1/8 in. valve has MNPT x FNPT threaded connections, a 1 psi cracking pressure, and a full-flow design. The brass body and brass seat are paired with a stainless steel spring and Viton/FKM seal. It can be mounted in horizontal or vertical positions.
Key Features:
- Valve type: Piston spring check valve with inline piston design
- Body material: Brass
- Check mechanism material: Brass
- Connection size: 1/8 in. x 1/8 in.
- Connection type: MNPT x FNPT, NPT threaded
- Cracking pressure: 1 psi
- Flow design: Single, full flow
- For media: Air and compatible fluids
- Pressure rating: 500 psi maximum operating/water pressure
- Temperature range: -20 degrees F to 180 degrees F
- Seal material: Viton/FKM
- Seat material: Brass
- Spring material: Stainless steel
- Mounting orientation: Horizontal, vertical
- Valve series: 210
- Overall length: 1.19 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.30
