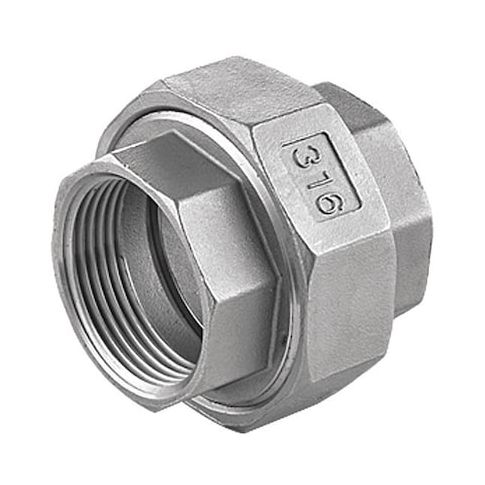

1-1/2" FNPT 316 SS Union MPN:600U111N112
The ZORO SELECT - 600U111N112 is a reliable and durable 1-1/2in FNPT 316 SS Union ideal for various industrial and commercial applications, including plumbing, HVAC, and chemical processing. Its 316 stainless steel construction provides excellent corrosion resistance, ensuring a long-lasting and leak-free connection. The union's female NPT threaded connections enable easy assembly and disassembly, facilitating maintenance and replacement without rotating the pipes. Suitable for use with potable water, this low-lead compliant union meets ANSI B1.20.1 standards and is rated for Class 150 pressure, making it a versatile and trustworthy solution for a wide range of applications.
Top product features:
- The union allows connection and disconnection without rotating the pipes, facilitating maintenance or replacement.
- It provides corrosion resistance due to its 316 stainless steel construction.
- It meets ANSI B1.20.1 standards and is rated for Class 150 pressure, supporting a maximum operating pressure of 300 psi and a maximum steam pressure of 150 psi.
Top product applications:
- Water treatment systems
- High-pressure steam distribution systems
- Chemical processing plants
The ZORO SELECT - 600U111N112 is a stainless steel pipe union designed for joining two 1-1/2 inch pipe ends with female NPT threaded connections. It allows connection and disconnection without rotating the pipes, facilitating maintenance or replacement. Constructed from 316 stainless steel, it provides corrosion resistance. Media compatibility is not specified
- verify compatibility with project requirements
- product material is 316 stainless steel. The union meets ANSI B1.20.1 standards and is rated for Class 150 pressure, supporting a maximum operating pressure of 300 psi and a maximum steam pressure of 150 psi. Key Features:
- - Material: 316 stainless steel providing resistance to corrosion.
- - Type: Union, three-piece fitting with body, nut, and mating seat or gasket.
- - Connection: Female NPT threaded ends on both sides.
- - Size: Fits 1-1/2 inch nominal pipe size with 1-1/2 inch outside diameter on both ends.
- - Pressure Rating: Class 150, 300 psi maximum operating pressure and 150 psi maximum steam pressure.
- - Compliance: Meets ANSI B1.20.1 standards
- low lead compliant for potable water use.
- - Dimensions: Overall length 57 mm
- hex wrench size 70.5 mm across flats.
- - Does not include pre-applied thread sealant or a sealing component.
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 8.00
- Package Height: 8.00
- Package Weight: 33.00
