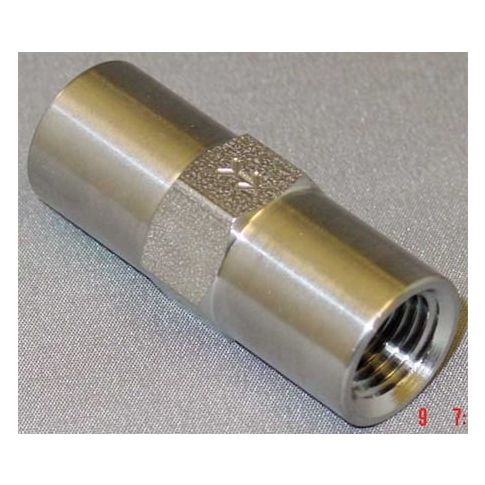

1/4" FNPT Stainless Steel Piston Spring Check Valve MPN:CHK SST 415-4F4F-B
Free Shipping
In Stock
The GoVets Select 1/4in FNPT Stainless Steel Piston Spring Check Valve is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, this valve ensures one-way flow, preventing backflow and contamination. Its stainless steel construction and Buna-N seal make it resistant to corrosion and suitable for high-temperature applications up to 180°F. Ideal for use in water and steam systems, this valve is also suitable for use in chemical and pharmaceutical applications where high pressure and purity are required. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- This check valve features a single flow design with an inline piston mechanism.
- The valve has a stainless steel body and seat for durability and resistance to corrosion.
- The piston spring design allows for a cracking pressure of 1 psi.
Top product applications:
- Oil and Gas Industry: The 1/4in FNPT Stainless Steel Piston Spring Check Valve can be used in oil and gas applications where high pressure and temperature resistance is required.
- Hydraulic Systems: This check valve is suitable for use in hydraulic systems where a reliable and durable valve is needed to prevent backflow and ensure smooth operation.
- Automotive Applications: The valve's compact size and high pressure rating make it a good fit for use in automotive applications, such as in fuel systems or cooling systems where a reliable check valve is required.
GoVets Select 415 Series piston spring check valve for general-purpose air and fluid service. This inline valve features a stainless steel body with 1/4 in. FNPT x FNPT female threaded connections and a spring-loaded stainless steel piston check mechanism, single-flow design, and 1 psi cracking pressure for applications requiring resistance to reverse flow in piping systems. The valve can be mounted horizontally or vertically.
Key Features:
- Valve type: Piston spring check valve with inline piston design
- Body material: Stainless steel
- Connection size and type: 1/4 in. FNPT x FNPT, female x female
- Flow design: Single
- full flow: Yes
- For media: Air, fluids
- Cracking pressure: 1 psi
- Maximum operating pressure: 500 psi
- Operating temperature range: -20 degrees F to 180 degrees F
- Seal material: Buna-N
- Seat material: Stainless steel
- Check mechanism material: Stainless steel
- Spring material: Stainless steel
- Mounting orientation: Horizontal, vertical
- Valve series: 415
- Overall length: 1.8 in.
- Standards: UL, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.00
- Package Height: 0.80
- Package Weight: 0.57
