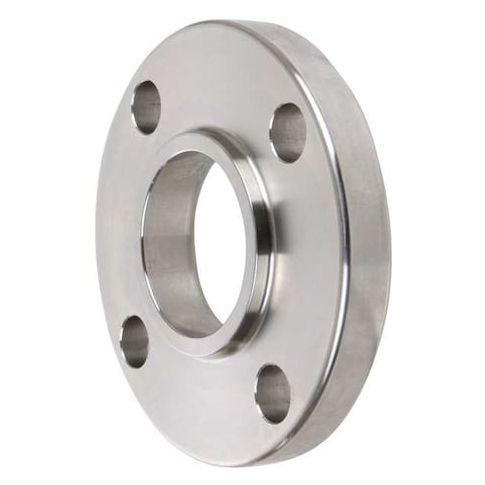

6" Welded SS Slip-On Flange MPN:4381002300
Upgrade your stainless steel piping system with the ZORO SELECT 4381002300, a 6-inch slip-on flange made from durable 316 stainless steel. This versatile flange features a raised face connection surface and is designed for use in various industries, including chemical processing, oil and gas, and pharmaceutical manufacturing. Its Class 150 rating ensures reliable performance under high pressure, and its temperature range of -60 to 450°F makes it suitable for a wide range of applications. With its ease of installation and secure connection, this flange is an ideal choice for engineers and technicians seeking a reliable and long-lasting solution.
Top product features:
- It features a bore slightly larger than the pipe outside diameter, allowing it to slip over the pipe and be secured by fillet welds on both the inside and outside of the pipe.
- It has a raised face connection surface.
- It conforms to ANSI B16.5 and ASTM A182 standards.
Top product applications:
- Oil and Gas Industry
- Water Treatment Plants
- Power Generation Facilities
The ZORO SELECT - 4381002300 is a 6-inch slip-on flange made from 316 stainless steel, designed for use in stainless steel piping systems. It features a bore slightly larger than the pipe outside diameter, allowing it to slip over the pipe and be secured by fillet welds on both the inside and outside of the pipe. This slip-on flange has a raised face connection surface and is rated as Class 150 according to ANSI B16.5 correspondence. The flange has an outside diameter of 11 inches and includes 8 bolt holes for securing to mating components. It conforms to ANSI B16.5 and ASTM A182 standards and has a temperature operation range of -60 to 450°F in accordance with product specifications.
Key Features:
- - Material: 316 Stainless Steel
- - Nominal Pipe Size: 6 inches
- - Flange Outside Diameter: 11 inches
- - Number of Bolt Holes: 8
- - Connection Type: Welded
- - Connection Surface: Raised Face
- - Pressure Class: Class 150
- - Maximum Operating Pressure: 150 psi
- - Temperature Range: -60 to 450°F in accordance with product specifications
- - Standards: ANSI B16.5
- ASTM A182
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 11.00
- Package Height: 1.56
- Package Weight: 16.54
