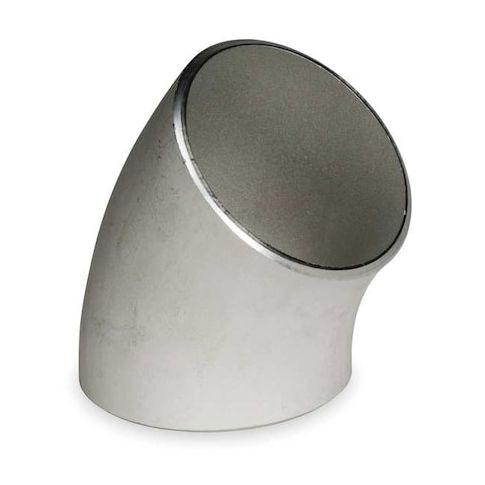

4" Butt Weld 304L SS Long Radius 45 Degree Elbow Sch 10 MPN:4381010680
This 4in Butt Weld 304L SS Long Radius 45 Degree Elbow is a versatile pipe fitting designed to change the direction of flow by 45 degrees in various industrial applications. Made from 304L stainless steel, it provides excellent corrosion resistance and durability. The long radius design minimizes pressure drop and ensures smooth fluid flow. Suitable for use in chemical processing, oil and gas, and food processing industries, this elbow is a reliable choice for applications where high pressure and temperature resistance are required. Its compact size and Schedule 10 pipe wall thickness make it ideal for tight spaces and high-performance systems.
Top product features:
- 304L stainless steel construction
- Provides a 45-degree bend with a centerline radius equal to 1.5 times the nominal pipe diameter
- Butt weld connections on both ends for welded pipe integration
Top product applications:
- Industrial piping systems for chemical processing plants
- Oil and gas refineries
- Food processing and packaging facilities
The ZORO SELECT - 4381010680 is a 45 Degree Long Radius Elbow pipe fitting made from 304L stainless steel, designed to change the direction of flow by 45 degrees and provides a 45-degree bend with a centerline radius equal to 1.5 times the nominal pipe diameter. It features butt weld connections on both ends, sized for 4-inch nominal pipe, and conforms to Schedule 10 pipe wall thickness.
Key Features:
- - Material: 304L stainless steel
- - Shape: 45-degree long-radius elbow
- - Connections: Butt weld on both Sides A and B ends for welded pipe integration.
- - Nominal Size: 4 in for both ends, compatible with Schedule 10 pipe.
- - Maximum Operating Pressure: Rated for up to 275 psi at 150°F.
- - Overall Length: 5 inches.
- - Compliance: Meets Standards 403M-88a
- Dimensions and Materials conform to ASTM-A-403/A.
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 4.70
- Package Height: 4.70
- Package Weight: 2.30
