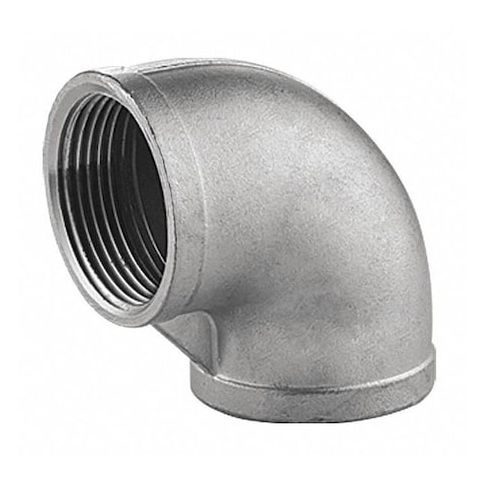

90° Elbow, 1/4 in FNPT, 316 Stainless Steel, Class 150, Max. Pressure 300 psi MPN:609E111N014
This 90° elbow pipe fitting is designed for use in piping systems where a right-angle flow direction change is required. Constructed from durable 316 stainless steel, it provides resistance to corrosion and high-pressure applications. The female NPT threaded ends on both sides ensure secure connections, making it suitable for use in various industries such as pharmaceutical, food processing, and chemical manufacturing. Its Class 150 pressure classification and maximum steam pressure of 150 psi make it ideal for applications where high-pressure systems are in use. This fitting conforms to ANSI B1.20.1 standards and low lead requirements.
Top product features:
- It is constructed from 316 stainless steel.
- It features female National Pipe Thread (FNPT) connections on both ends.
- It conforms to ANSI B1.20.1 standards and applicable low lead requirements.
Top product applications:
- Industrial Process Control Systems
- Chemical Processing Plants
- Medical Gas Systems
The ZORO SELECT - 609E111N014 is a stainless steel 90 degree elbow pipe fitting designed to connect two pipes at a right angle for flow direction change. Constructed from 316 stainless steel, it is suitable for use within specified pressure and environmental conditions. The fitting features female National Pipe Thread (FNPT) connections on both ends, each sized at 1/4 inch nominal pipe size with 18 threads per inch. It is classified as Class 150 for piping systems within the specified pressure range, rated for operation within specified pressure parameters, with a maximum steam pressure of 150 psi. The fitting conforms to ANSI B1.20.1 standards and applicable low lead requirements.
Key Features:
- - Material: 316 Stainless Steel
- - Shape: 90 Degree Elbow for right-angle flow direction changes
- - Connection Type: Female NPT threaded ends on both sides
- - Nominal Pipe Size: 1/4 inch on both sides
- - Thread Pitch: 18 threads per inch on both ends
- - Pressure Classification: Class 150 for piping systems within the specified pressure range
- - Maximum Steam Pressure: 150 psi
- - Finish Color: Silver
- - Compliance: Conforms to ANSI B1.20.1 standards and applicable low lead requirements
- - Includes no pre-applied thread sealant or additional seals
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.20
- Package Width: 1.20
- Package Height: 0.80
- Package Weight: 0.10
