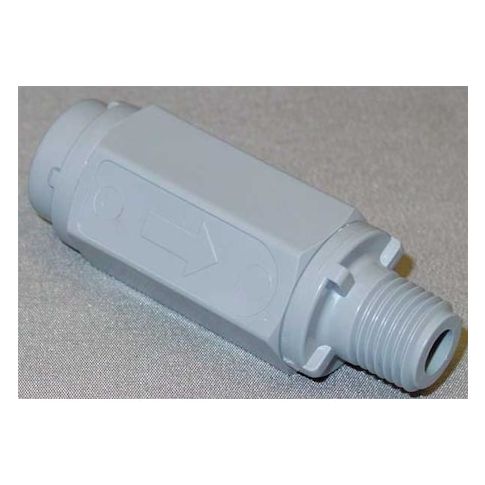

1/4" MNPT x FNPT Gray PVC Ball Cone Spring Check Valve MPN:PVC CHK 426-4F4M-F
Free Shipping
In Stock
This 1/4in MNPT x FNPT Gray PVC Ball Cone Spring Check Valve is a reliable solution for various applications, including water treatment, irrigation, and laboratory systems. Its inline design allows for easy installation, while the spring-loaded mechanism ensures a tight seal against backflow, preventing contamination and ensuring safe operation. The valve's high temperature and pressure ratings make it suitable for use in a wide range of environments. With its compact size and low weight, it's ideal for use in tight spaces and can be easily shipped and stored. Its long-lasting construction and easy maintenance make it a valuable addition to any system.
Top product features:
- Flow Design Single
- Inline Ball Cone Mechanism and Body Design
- Full Flow Valves Yes
Top product applications:
- Automotive Cooling System
- Water Treatment Plants
- HVAC Systems
Zoro Select 426 Series gray PVC ball cone spring check valve is a 1/4 in inline check valve with 1/4 in MNPT x FNPT threaded connections. It is designed for one-way flow applications with a spring-loaded ball check mechanism. The valve is for use with compatible chemical media and features a full-flow inline body with 2.99 in overall length and 1 in overall height and width.
Key Features:
- - Valve type: Ball cone spring check valve with single-flow inline body design
- - Size and connections: 1/4 in nominal size with 1/4 in MNPT x FNPT NPT connections
- - Body material: PVC
- - Check mechanism: Ball with stainless steel mechanism components
- - Seal and seat materials: Viton/FKM seal, PTFE seal component, and PVC seat
- - Spring material: Verify supplier specification before publishing
- - Cracking pressure: 1 psi
- - Pressure and temperature ratings: 125 psi maximum pressure, -20 degrees F minimum temperature, 140 degrees F maximum temperature
- - Mounting orientation: Horizontal or vertical
- - Dimensions: 2.99 in overall length, 1 in overall height and width, 1 in hex size
- - Standard: NSF 42
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.50
- Package Height: 1.00
- Package Weight: 0.29
