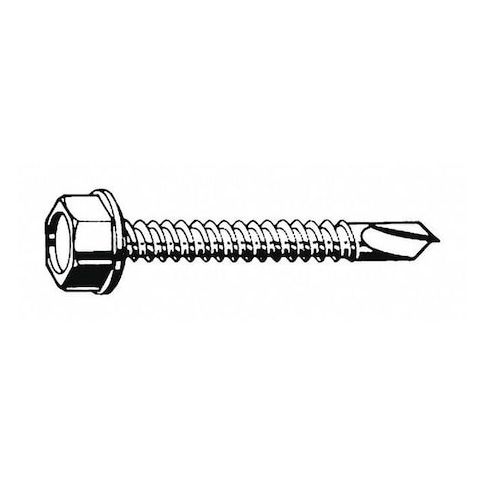

Self-Drilling Screw, #10 x 1 in, Plain 410 Stainless Steel Flange Hex Head External Hex Drive MPN:U31860.019.0100

• The ZORO SELECT - U31860.019.0100 is a self-drilling screw, a type of fastener equipped with a drill point at the end that allows it to be driven directly into materials without pre-drilled holes. Made from 410 stainless steel, these screws are designed for applications such as metal fabrication, construction, and assembly in industrial and commercial settings. They offer secure fastening with reduced labor time and effort compared to traditional screw types.




  • Application: Intended for use in steel-to-steel applications.
  • CAD Available: A Computer-Aided Design (CAD) file is available for accurate incorporation into digital project plans.
  • Drive & Size: Requires an external hex drive tool with a size of 5/16 inch for installation or removal.
  • Fastener Length: The total length of this self-drilling screw is 1 inch, determining its penetration depth and securing capacity.
  • Finish: Features a plain finish which may contribute to durability, corrosion resistance, and reduced friction during installation.
  • Head Type & Diameter: Features flange hex head type with diameter ranging from 0.120 inches to 0.105 inches ensuring secure fit and proper load distribution in various applications.
  • Suitable Materials: Capable of penetrating multi-material surfaces up to a maximum drilling thickness of 0.063 inches
  • pre-drilled holes may not be necessary but are recommended based on material properties
  • Screw Size & Thread Style: #10 screw size indicative of width and thread count
  • features a fully threaded style that could potentially enhance grip on material surfaces
